Description

Item Includes:

  • AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom (Black)
  • Remote Control
  • Camera Mounting Bracket
  • Power Adapter
  • Power Cable
  • Limited 2-Year Manufacturer Warranty

Overview

The most cost-effective NDI|HX PTZ to date

The PTZ-NDI-X18 is the perfect entry level PTZ for new, and existing live streaming productions.

This PTZ comes equipped with a crystal clear 18X optical zoom, allowing for crisp 1080p imaging over HDMI, NDI|HX, and IP protocols simultaneously.

Utilize the PTZ with your standard VISCA, VISCA over IP, or NDI controllers. Overall, the PTZ-NDI-X18 gets the best NDI|HX performance per buck, without the compromise of video quality.

Main Features:

  • NDI®|HX streaming capable for low latency video streaming and PTZ control over NDI®|HX Protocol.
  • Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
  • Advanced digital image processor provides vivid and detailed images with full access feature sets.
  • Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
  • Simultaneous IP and HDMI outputs for versatility and seamless video performance.
  • Power Optical Zoom capability up to 18X.
  • 3.5mm Line-in for no audio/video delay over IP/NDI protocols.
  • Built-in OSD controls for customizable image settings.
  • Economically priced and perfect solutions for newer broadcast workflows.

SPECIFICATIONS

VIDEO

Image Sensor: 1/3” Progressive CMOS

Effective Pixels: Horizontal: 1920, Vertical: 1080

Pixel Size: 2.13 μm (H) x 2.13 μm (V)

Resolution: 1080p & 1080i: 1920 x 1080

Resolution Rate:

  • 1080 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
  • 1080 60i/59.94i/50i
  • 720 60p/59.94p/50p/30p/29.97p/25p

Output:

  • HDMI
  • NDI®|HX / RTSP / RTMP / SRT

Color Space: 4:2:2 (YCbCr) 10bit

Min. Illumination: 0.1Lux

FUNCTION

White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor

Focus: Auto, Manual

Shutter Speed: 1 to 1/10,000 Sec.

LENS

Lens: 18X HD Optical Zoom

Focal Length: 5.2~93mm

F-Stop: F1.5 ~ F3.0

Viewing Angle: 60° (wide) ~ 4° (tele)

PTZ

Pan/Tilt Range Pan: 340°, Tilt: +90 to -30°

Pan/Tilt Speed Pan: 0° to +120°/s, Tilt: 0° to +80°/s

Presets:

  • 128 Positions (via web)
  • 10 Positions (via remote)

STANDARD

IP Protocol: UDP/IP, RTSP/RTMP

AUDIO

Input: 3.5mm TRS Stereo Audio Port

Sample Rate: 16/24/32 Bits

PHYSICAL

Camera Control:

  • Protocol: VISCA, VISCA over IP, NDI

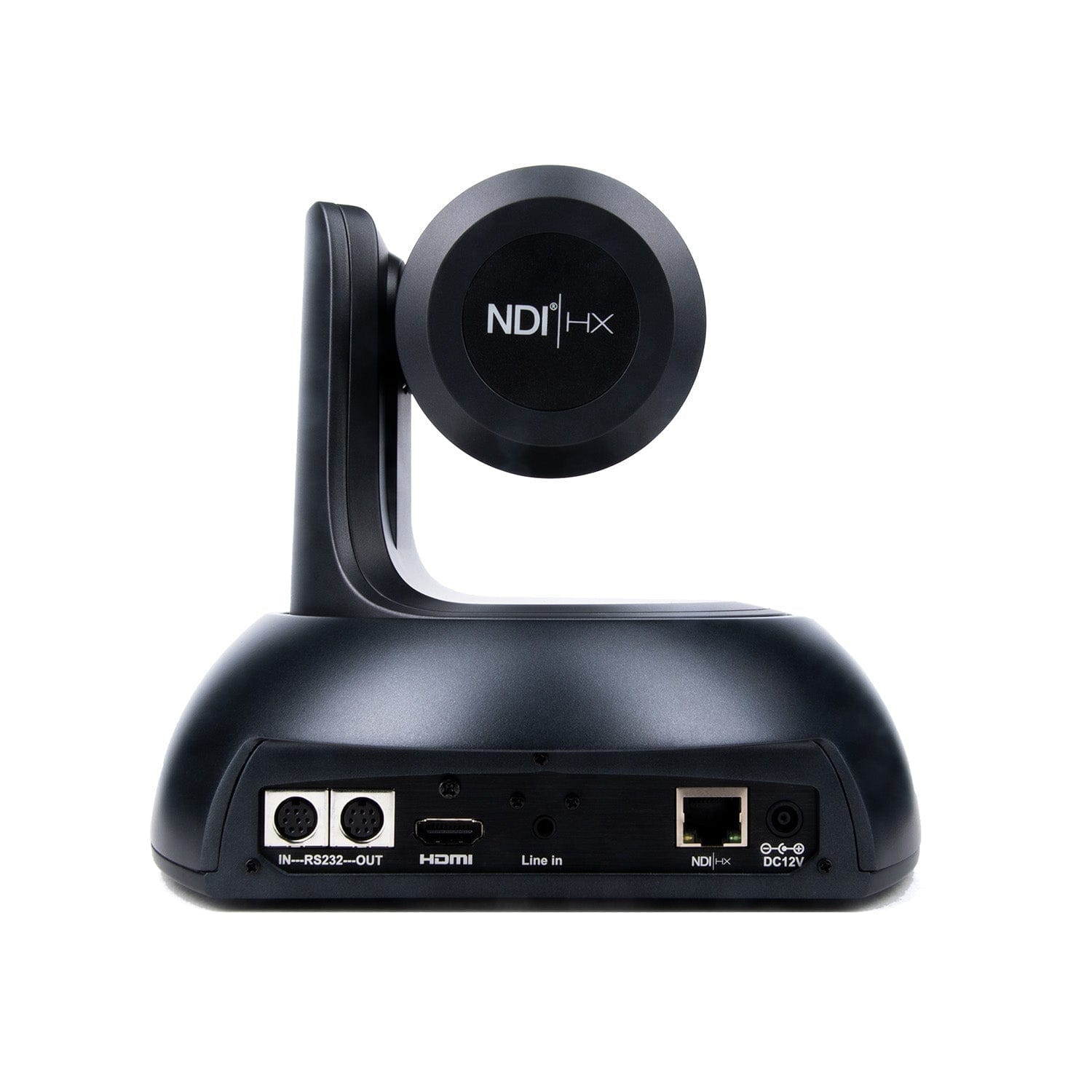

  • Interface: RS-232C IN & OUT, RJ-45
  • Remote Controller

Operation Temp: 32°F - 104°F

Dimension: 155mm x 160m x 170mm / 6.10” x 6.92” x 6.69”

Weight: 1.35kg / 2.97lbs

Power:

  • 12VDC (+9 - +15VDC)
  • PoE+ (IEEE802.3at Standard Required)

AIDA Imaging PTZ-NDI-X18B Broadcast NDI|HX FHD NDI/IP/HDMI 18X Zoom PTZ Camera (Black)

Regular price $795.00

Shipping calculated at checkout

SKU: PTZ-NDI-X18B

UPC #686091739786

Item Includes:

  • AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom (Black)
  • Remote Control
  • Camera Mounting Bracket
  • Power Adapter
  • Power Cable
  • Limited 2-Year Manufacturer Warranty

Overview

The most cost-effective NDI|HX PTZ to date

The PTZ-NDI-X18 is the perfect entry level PTZ for new, and existing live streaming productions.

This PTZ comes equipped with a crystal clear 18X optical zoom, allowing for crisp 1080p imaging over HDMI, NDI|HX, and IP protocols simultaneously.

Utilize the PTZ with your standard VISCA, VISCA over IP, or NDI controllers. Overall, the PTZ-NDI-X18 gets the best NDI|HX performance per buck, without the compromise of video quality.

Main Features:

  • NDI®|HX streaming capable for low latency video streaming and PTZ control over NDI®|HX Protocol.
  • Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
  • Advanced digital image processor provides vivid and detailed images with full access feature sets.
  • Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
  • Simultaneous IP and HDMI outputs for versatility and seamless video performance.
  • Power Optical Zoom capability up to 18X.
  • 3.5mm Line-in for no audio/video delay over IP/NDI protocols.
  • Built-in OSD controls for customizable image settings.
  • Economically priced and perfect solutions for newer broadcast workflows.

SPECIFICATIONS

VIDEO

Image Sensor: 1/3” Progressive CMOS

Effective Pixels: Horizontal: 1920, Vertical: 1080

Pixel Size: 2.13 μm (H) x 2.13 μm (V)

Resolution: 1080p & 1080i: 1920 x 1080

Resolution Rate:

  • 1080 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
  • 1080 60i/59.94i/50i
  • 720 60p/59.94p/50p/30p/29.97p/25p

Output:

  • HDMI
  • NDI®|HX / RTSP / RTMP / SRT

Color Space: 4:2:2 (YCbCr) 10bit

Min. Illumination: 0.1Lux

FUNCTION

White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor

Focus: Auto, Manual

Shutter Speed: 1 to 1/10,000 Sec.

LENS

Lens: 18X HD Optical Zoom

Focal Length: 5.2~93mm

F-Stop: F1.5 ~ F3.0

Viewing Angle: 60° (wide) ~ 4° (tele)

PTZ

Pan/Tilt Range Pan: 340°, Tilt: +90 to -30°

Pan/Tilt Speed Pan: 0° to +120°/s, Tilt: 0° to +80°/s

Presets:

  • 128 Positions (via web)
  • 10 Positions (via remote)

STANDARD

IP Protocol: UDP/IP, RTSP/RTMP

AUDIO

Input: 3.5mm TRS Stereo Audio Port

Sample Rate: 16/24/32 Bits

PHYSICAL

Camera Control:

  • Protocol: VISCA, VISCA over IP, NDI
  • Interface: RS-232C IN & OUT, RJ-45
  • Remote Controller

Operation Temp: 32°F - 104°F

Dimension: 155mm x 160m x 170mm / 6.10” x 6.92” x 6.69”

Weight: 1.35kg / 2.97lbs

Power:

  • 12VDC (+9 - +15VDC)
  • PoE+ (IEEE802.3at Standard Required)
AIDA Imaging PTZ-NDI-X18B Broadcast NDI|HX FHD NDI/IP/HDMI 18X Zoom PTZ Camera (Black)
