Overview

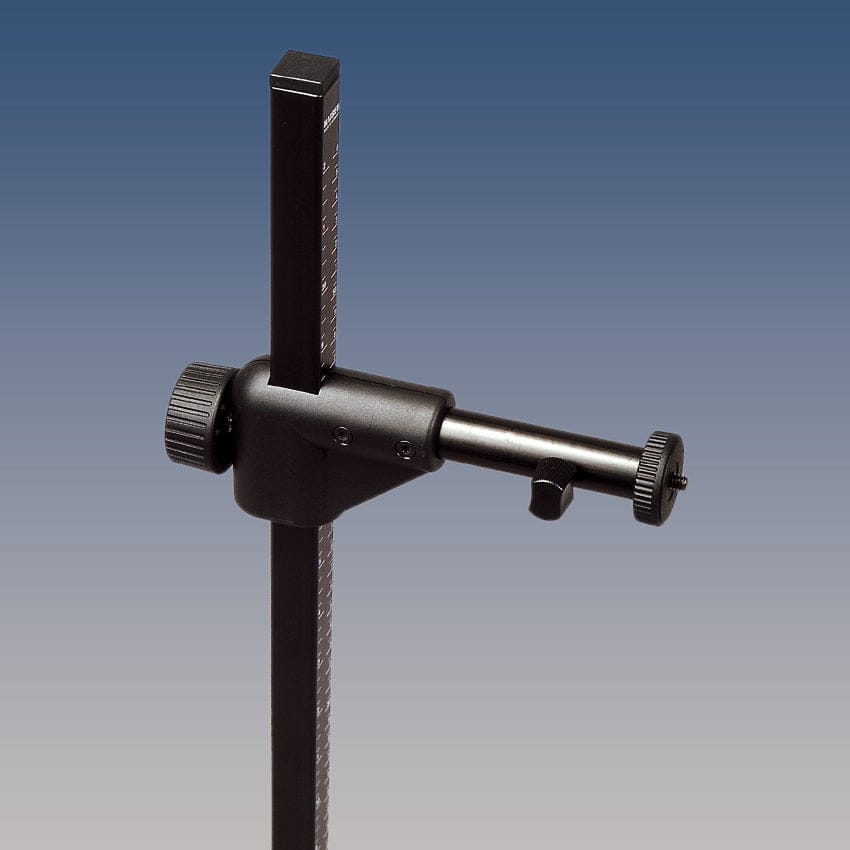

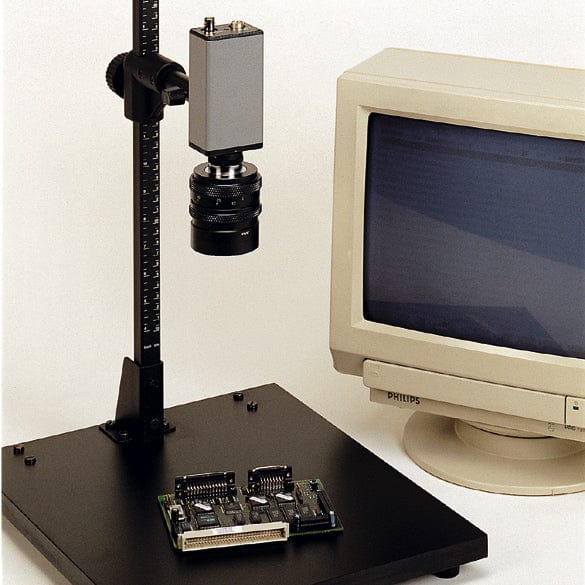

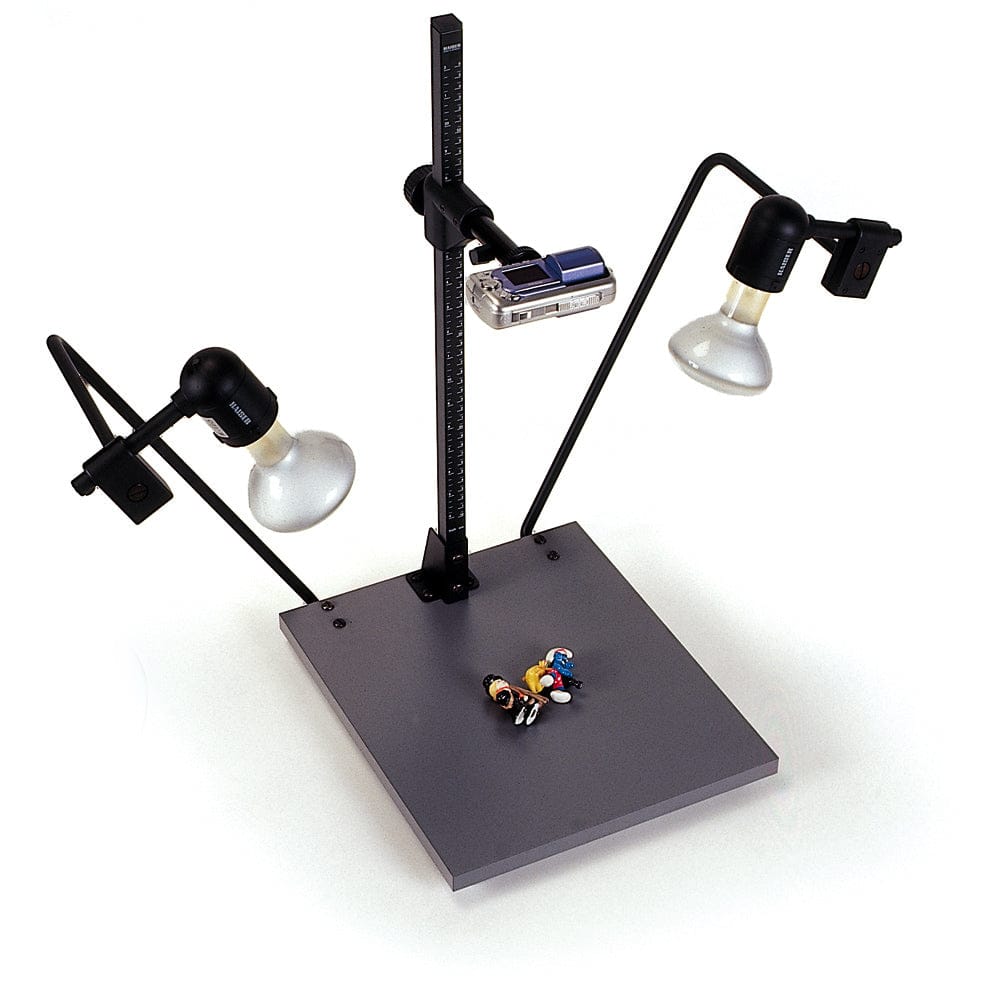

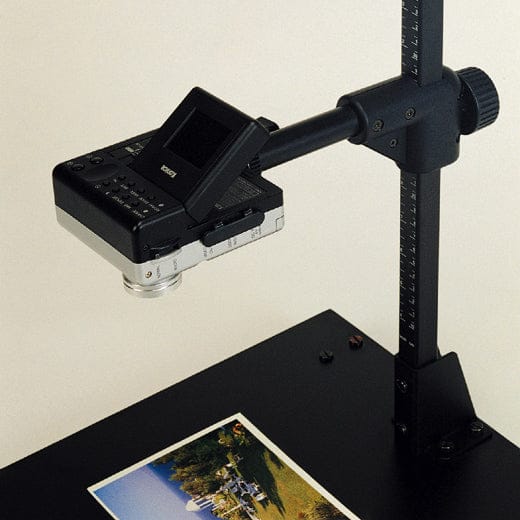

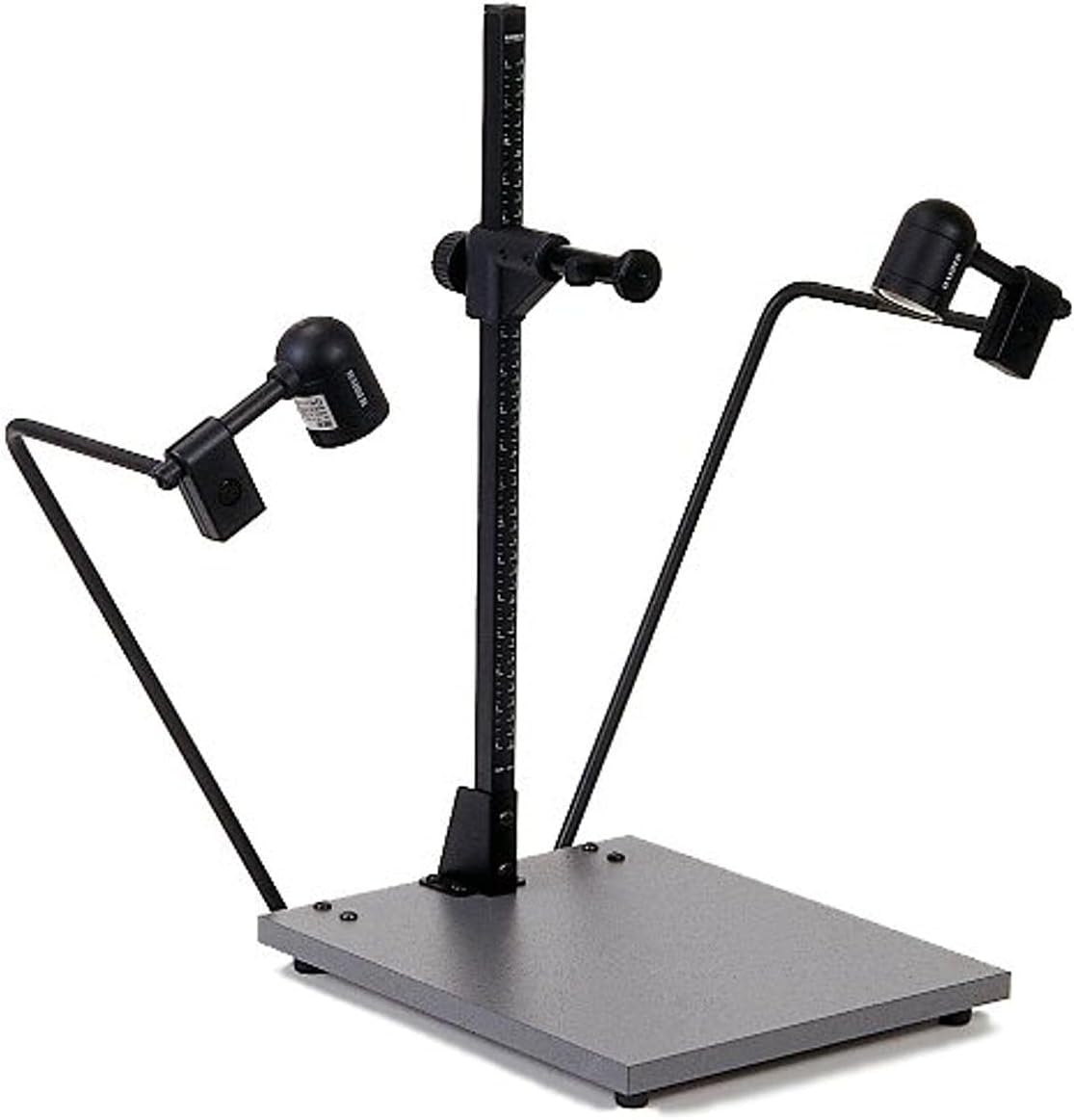

The Kaiser “reprokid” Copy Stand with Lighting Unit is a compact and precise reproduction system designed for small and lightweight cameras, including digital compact cameras and CCD units. It features a non-reflective matte gray base board, an inch/cm calibrated column, and a height-adjustable camera arm with a standard 1/4"-20 mounting thread.

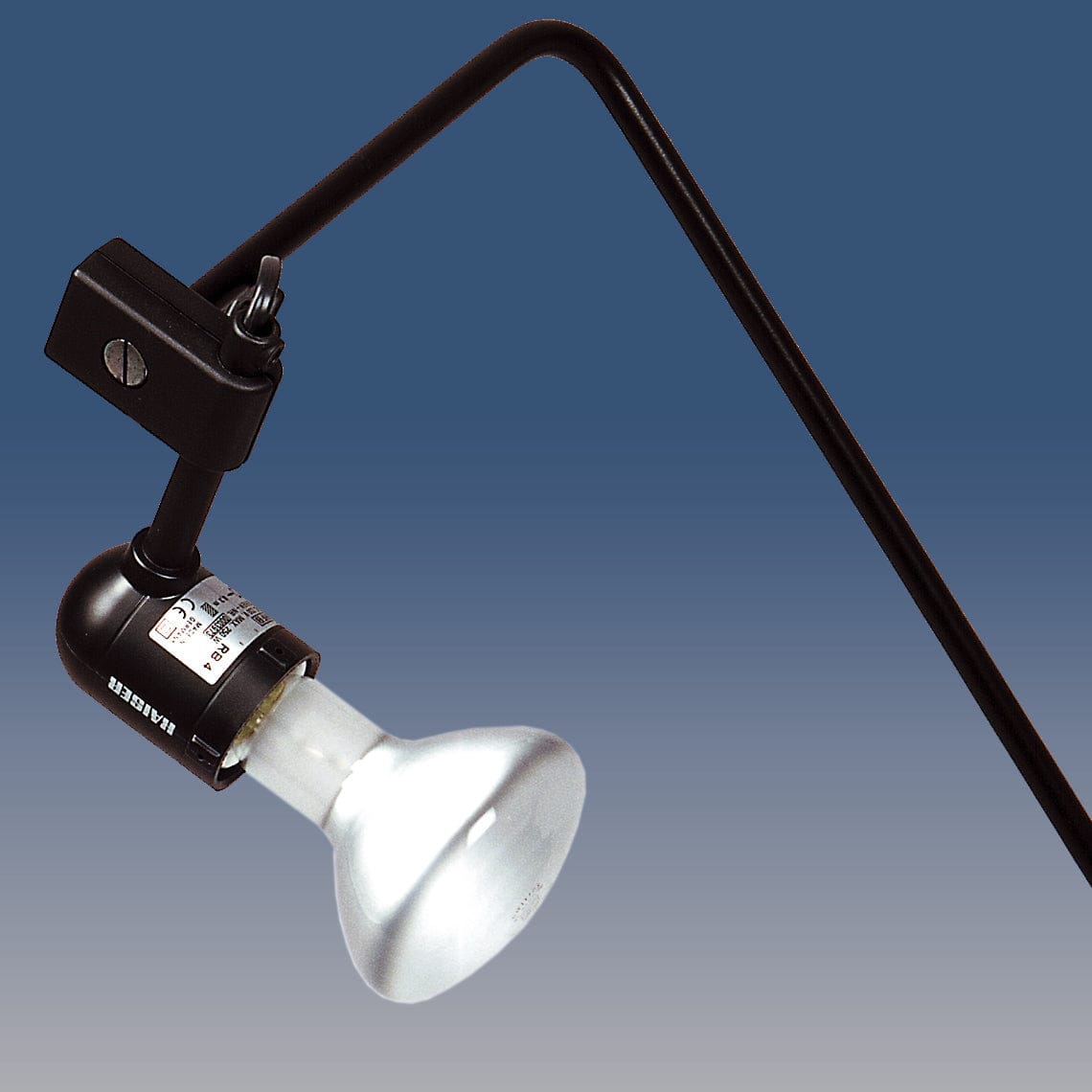

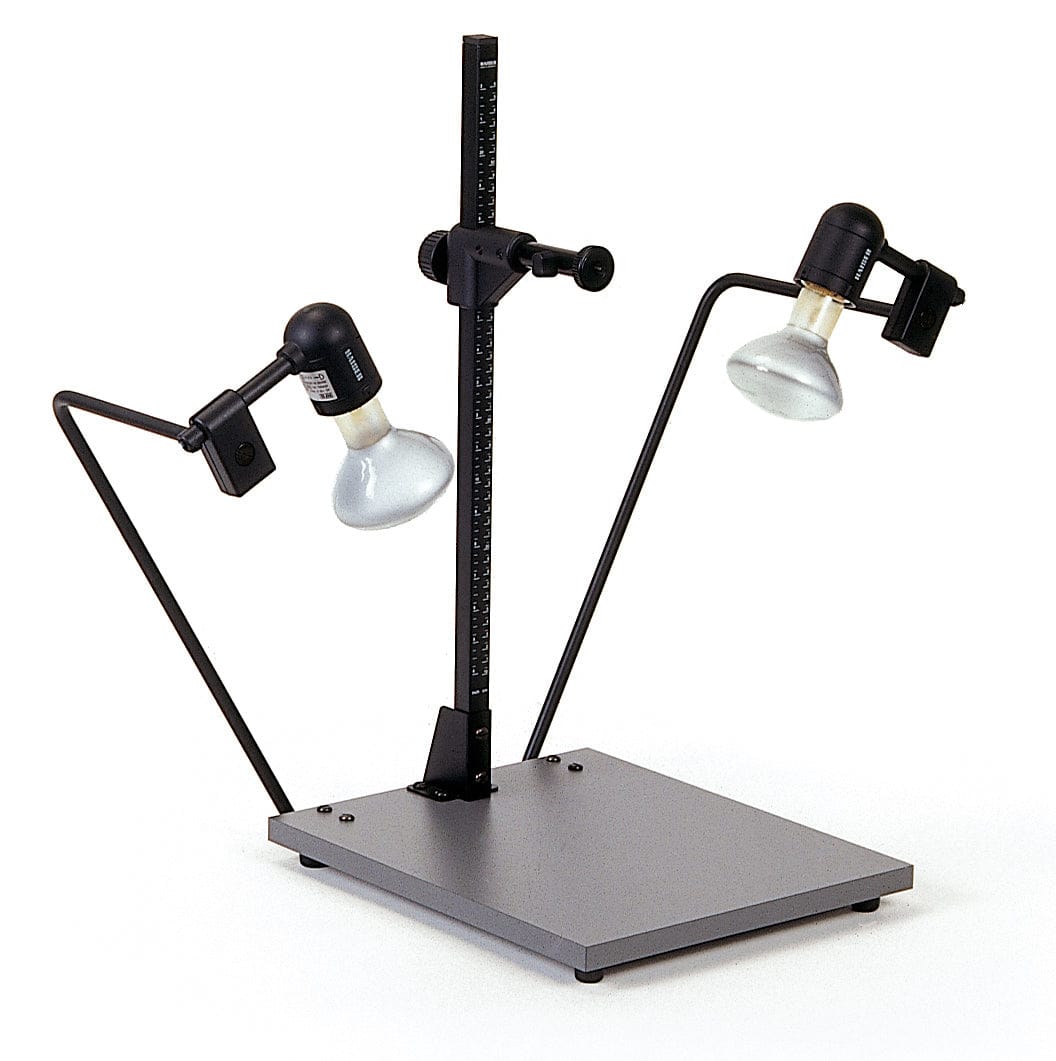

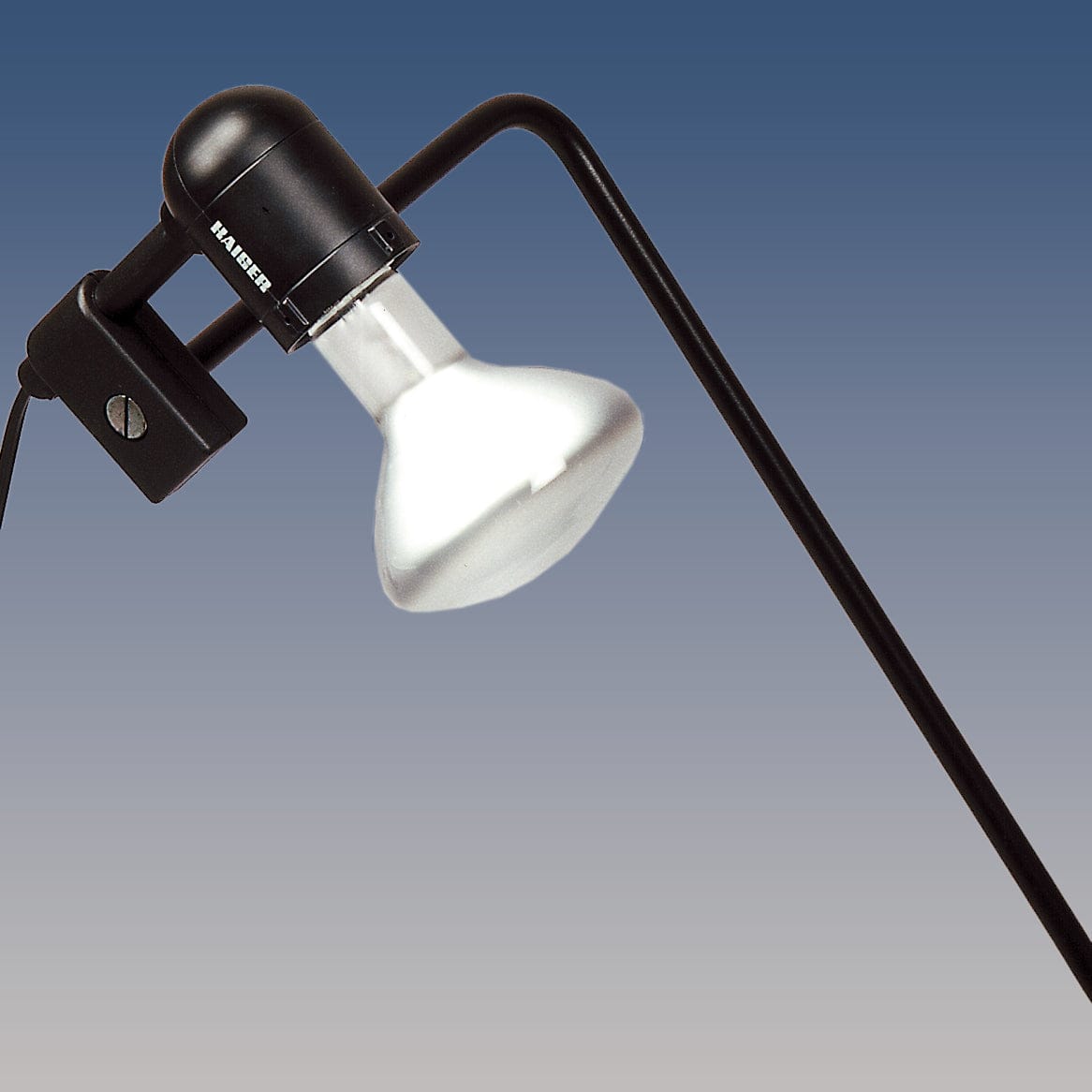

The included lighting unit uses two E27 screw-mount lamp holders, each supporting bulbs up to 250W (bulbs not included), providing even and controlled illumination for copy work, archiving, documentation, and product photography.
Features
- Super-compact design for lightweight and compact cameras
- Non-reflective, matte gray base board
- Inch/cm scale on the column for accurate height adjustments
- Height-adjustable camera arm
- Standard 1/4"-20 mounting thread
- Dual-lamp lighting unit with two E27 screw-in sockets (supports up to 250W each; bulbs not included)
Specifications
Packaging Weights & Measures
- Packaging Length: 21.26 in
- Packaging Width: 16.54 in
- Packaging Height: 7.87 in
- Packaging Weight: 11.02 lb
- Master Carton Length: 21.26 in
- Master Carton Width: 16.54 in
- Master Carton Height: 7.87 in
- Master Carton Weight: 11.02 lb
- Master Quantity: 1
Product Weights & Measures
- Product Width: 12.6 in
- Product Height: 24.31 in
- Product Weight: 11.02 lb
Categories & Classifications
- General Category: Copy Stand
- Specific Category: Copy Stand
- Kaiser System: “reprokid”
Related & Compatible Products
- Compatible accessories: 205904, 205531, 205534
Technical Specifications
- Column Height: 23.2 in
- Base Board Type: Gridded, non-reflective, matte gray
- Base Board Dimensions: 15.0 × 12.6 × 0.7 in
- Original Width for 50 mm lens: 13 in / 33 cm
- Original Width for 100 mm lens: 6.3 in / 16 cm
- Maximum Payload Capacity: 1 lb
- Power Cord: 2 cords, each with switch
- Power Cord Length: 98.4 in
- Power Supply Voltage: 110V
- Lamp Bulbs Replaceable: Yes
- Camera Arm Type: Camera arm
- Bushing Thread Mount: 1/4"-20
