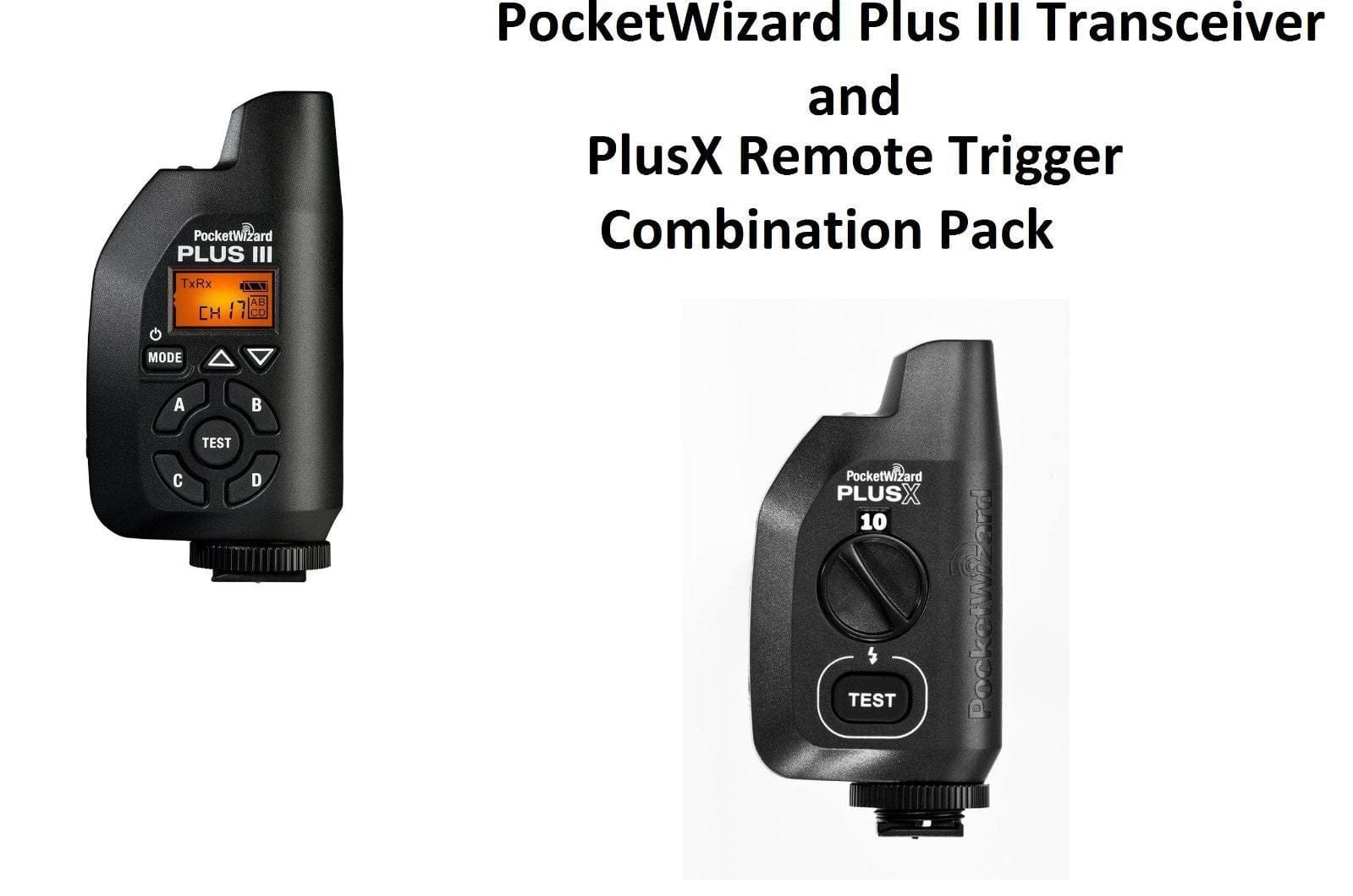

PocketWizard Plus III Transceiver (Black) + PlusX Wireless Radio Trigg

Gallery
Description

Description

Item Includes 2 Different UPC's

Plus III Transceiver Includes:

Plus III Transceiver in Black
Stereo 3.5mm (1/8") miniphone to miniphone cable
Mono 3.5mm miniphone to locking PC cable
Stereo 3.5mm miniphone to 6.3mm (") adapter
Lanyard
Operation reference sticker
Limited 3-Year Warranty

PlusX Wireless Radio Trigger Includes:

PlusX
Quick Guide
Stereo 3.mm (1/8") miniphone to miniphone cable
Mono 3.5mm miniphone to locking PC cable
Stereo 3.5mm miniphone to 6.3mm (1/4") adapter
Lanyard
Limited 1-Year Warranty

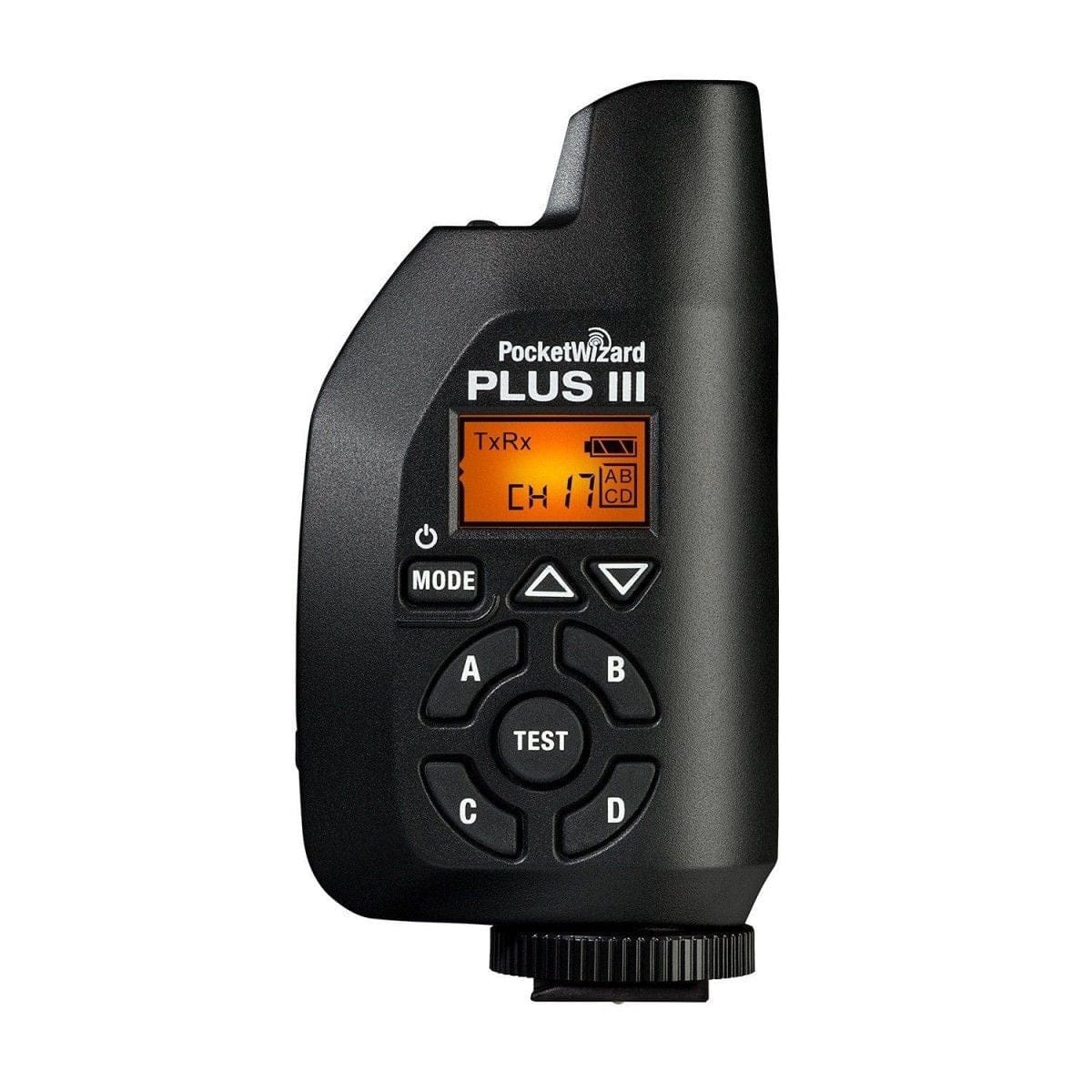

Plus III Transceiver Overview:

The PocketWizard Plus III Transceiver is a highly versatile and robust radio trigger that is compatible with all prior FCC-version PocketWizards, as well as most flash and camera systems.

Featuring 32 channels to choose from, this transceiver is simple to use in even the busiest of situations.

Wireless remote control is possible through the use of Quad-Zone Triggering, which allows you to manage up to 4 zones of remote PocketWizard-enabled cameras or flashes from one position.

Without having to leave camera position, you can activate and deactivate groups of flashes quickly and easily.

This transceiver also employ's PocketWizard's Auto-Sensing technology, which instantly allows your device to fluctuate from transmitter to receiver. This technology works directly in line with the Auto-Relay function for a completely remote workflow.

The efficiency of this transceiver is further extended by allowing up to 1640' transmissions in normal mode, and nearly double with Long Range mode. High speed, continuous shooting is made possible with the High Speed Receive mode, permitting up to 14.5 fps firing at up to 1/250 sec. for focal plane shutter and 1/500 sec. for leaf shutters.

The design of the Plus III incorporates a side-view LCD screen and touch pad interface for switching between modes, zones, and settings. It connects to any camera featuring a hot shoe and is also compatible with a variety of cables for linking to lighting and other remote systems.

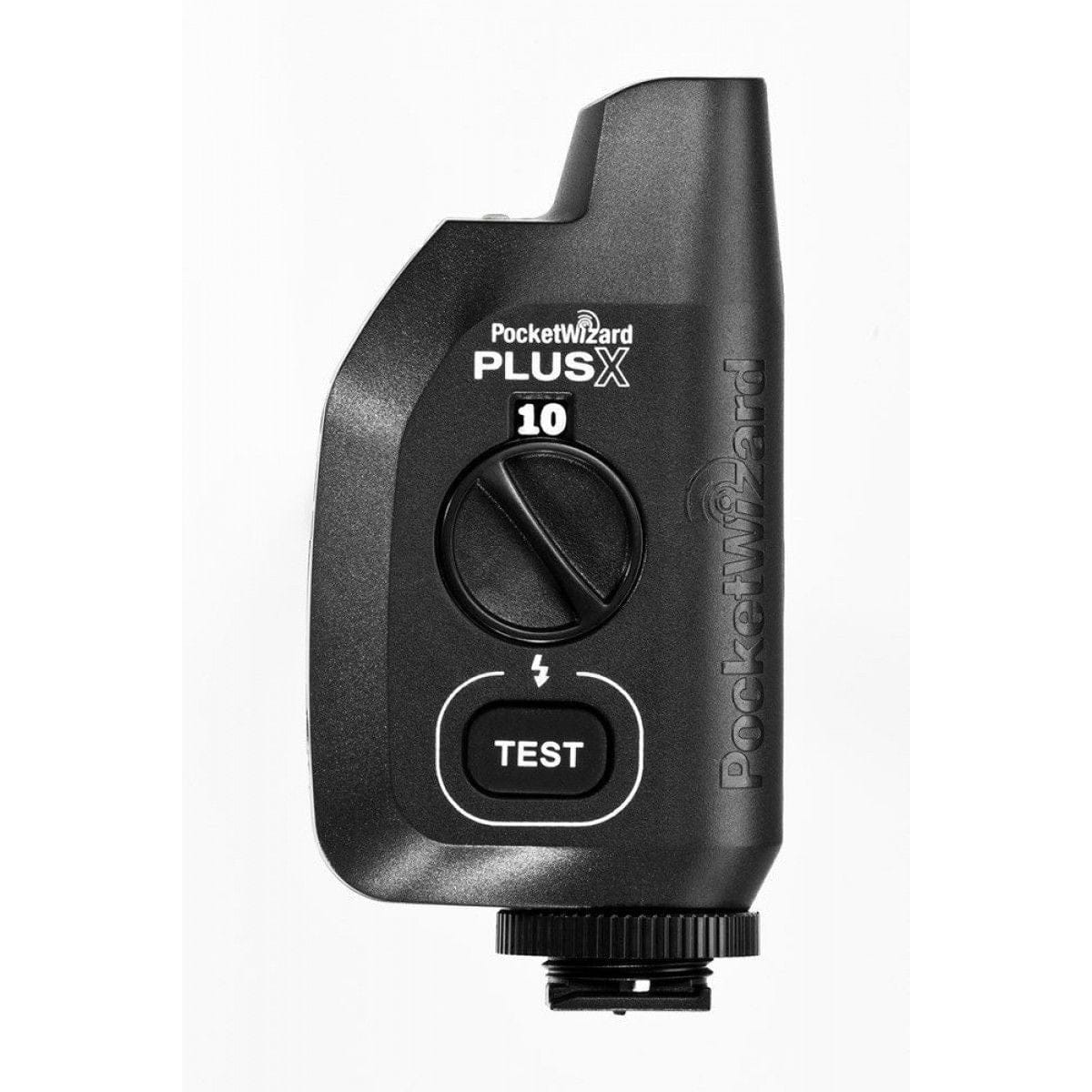

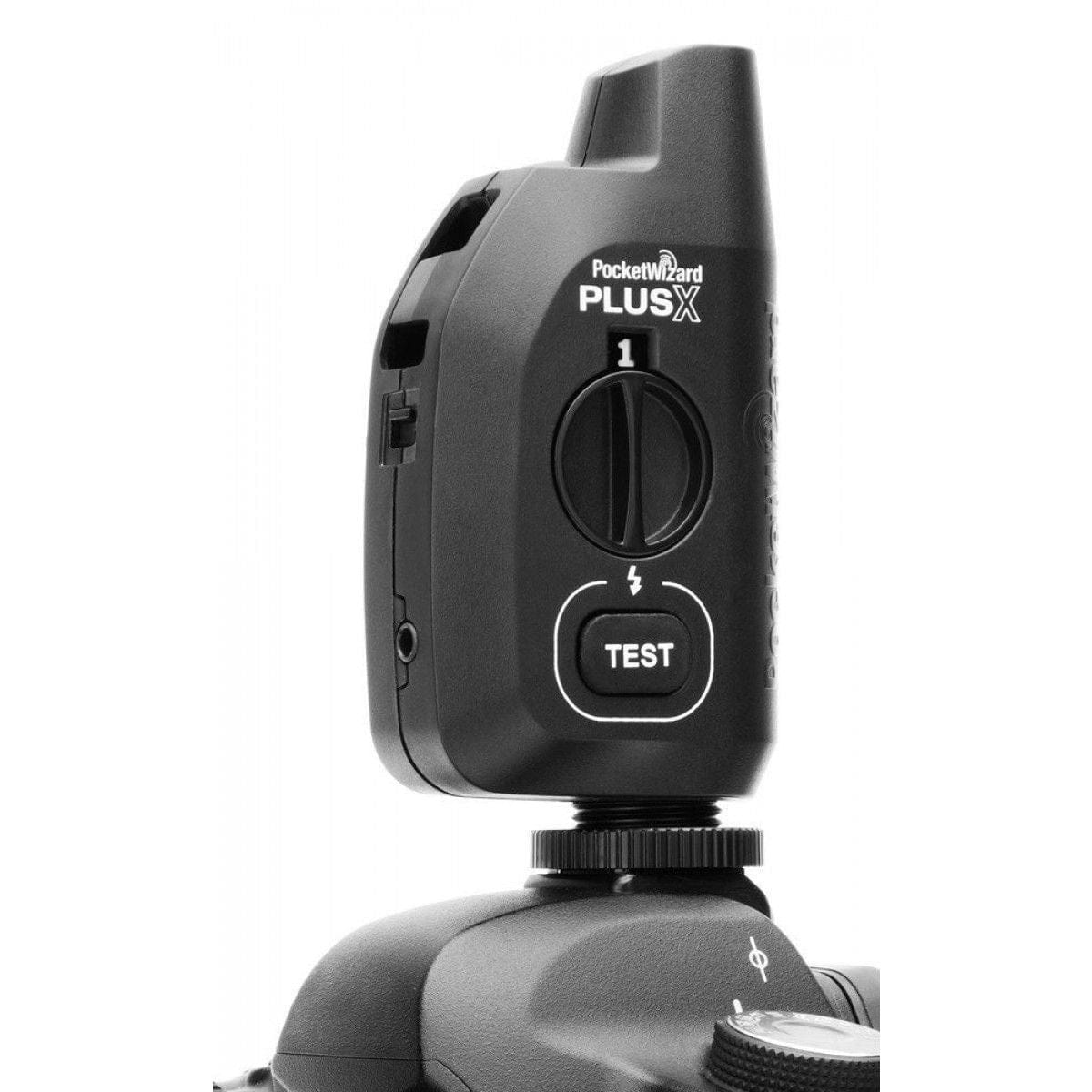

PlusX Wireless Radio Trigger Overview:

The PlusX is the simplest PocketWizard radio ever and the perfect entry into the PocketWizard Wireless System.

How simple? Attach one PlusX to your camera, another PlusX to a remote flash using an included cable, set both radios to the same channel and start taking pictures.

The PlusX is compatible with all Standard Channel-capable PocketWizard transmitters and receivers, so it's the perfect companion for your existing radios and new flashes.

Plus III Transceiver Features:

32 CHANNELS: With the Plus III Transceiver's 32 channels (16 Standard plus 16 Quad-Zone Triggering channels), finding an open channel is easy. Photographers working in a busy environment, including wedding halls, sports arenas or busy studios, can dial in a channel as simply as pushing a button.
QUAD-ZONE TRIGGERING: Selective Quad-Zone Triggering keeps you shooting photos, not running back and forth to your lighting or cameras. Without leaving the camera position, you can wirelessly activate or deactivate your remote flashes or cameras in 4 separately controllable zones: A, B, C, or D. This is ideal when using multiple lighting setups or turning remote cameras on and off as needed. The Plus III Transceiver is also the perfect partner for the MultiMAX® radio, which also features 32 channels and four zones.
AUTO-SENSING TRANSCEIVER: With our patented Auto-Sensing Transceiver Technology, the Plus III Transceiver is one smart radio. When set to TxRx, it will instantly and intelligently switch between transmitter and receiver modes as needed for greater flexibility on the job. The Plus III may be set to transmit (Tx) or receive (Rx) only when needed.
TWO-STAGE REMOTE CAMERA TRIGGERING: The Plus III Transceiver is the perfect solution for remote camera triggering. The unique two-stage TEST button on the Plus III works just like the shutter release button on your camera. Press it halfway and your remote camera wakes up to meter and focus. Press TEST all the way to take your photo. When released, your remote camera will return to sleep mode normally; a real battery saver. Using the right cables, you can have a remote camera follow the camera in your hands - half press your hand-held camera's shutter release and the remote camera meters/focuses, full press and both cameras trigger away. This feature requires a receiving Plus III, MultiMAX or FlexTT5, and ACC Pre-Trigger cables.
AUTO-RELAY MODE: Our Auto-Sensing Transceiver technology lets you trigger a remote camera in sync with remote flashes using only 3 PocketWizard radios: the one in your hands, a Plus III cabled to your remote camera, and the one connected to your remote flash. The Plus III cabled to your remote camera will receive a radio signal and trigger the camera's motor drive, then switch to transmit mode and trigger your PocketWizard-connected remote flashes, all automatically. Start the sequence by simply pressing the TEST button of any PocketWizard Transmitter in your hands. Remote cameras require motor drive cables.
LONG RANGE CAPABILITY: Under ideal conditions, The Plus III Transceiver works up to 500 meters (1600 feet). Shooting environments are seldom ideal, so the Plus III incorporates two range extending modes for the challenges of the real world. Use Long Range Mode (LR) to nearly double the effective triggering distance in almost any environment. In very challenging environments or extremely long working ranges, place a Plus III in Repeater Mode (RP) between your transmitter and receiver to repeat the signal and complete the connection. These modes take a little extra time to do their jobs, so maximum X-sync may be reduced when firing remote flashes in LR or RP modes.\
HIGH SPEED RECEIVE: Normally, the Plus III is capable of triggering lights or cameras at a sustained rate of up to 12 frames per second (FPS), a standard for PocketWizard radios. Set the Plus III to High Speed Receive Mode (HSR) and trigger at rates up to 14.5 FPS, beyond the capability of most of today's cameras. This mode can also help high FPS triggering compatibility for any flash.
SIMPLE USER INTERFACE: The Plus III has an intuitive user interface where all channels, zones and modes can be easily engaged via a soft-touch keypad, and displayed on an easy-to-read backlit 2.5cm (1") LCD display. When you're working in dark environments, simply press any key other than TEST to Illuminate the LCD.
MODE & POWER ON/OFF BUTTON: To turn on your Plus III, hold down the MODE/Power button for about two seconds. Press the MODE button to select the Mode of operation you want to use. Press and hold MODE button down for a few seconds to turn the Plus III off.
SYNC SPEED: Ultra-fast microprocessors allow for reliable sync speeds of 1/250 for focal plane shutters and 1/500 for leaf shutters.
EASILY CONNECTED: On your camera, the Plus III slides into the hot shoe with no cables required. For your remotes, it features one do-it-all sync port. The industry-standard miniphone (3.5mm or 1/8") connector is much more reliable than a PC connection, so each Plus III comes complete with a miniphone-to-miniphone cable, and a miniphone-to-phono (1/4" or 6.3mm) adapter for triggering the majority of modern flashes. And it even comes with a miniphone to locking PC cable for triggering some remote speedlights, or for using your Plus III on-camera when you can't put it in a hot shoe. Other miniphone connector cables are available for major brands of lighting equipment in a variety of lengths. Dedicated remote camera triggering cables are also available for popular camera systems.
VERY COMPATIBLE: The Plus III is compatible with all PocketWizard transmitters and receivers of the same frequency* including PocketWizard-enabled photo gear from Profoto, Dynalite, Norman, Photogenic and Sekonic light meters. The PocketWizard wireless system allows for total flexibility with whatever lights or cameras you may be working with. (*FCC and CE PocketWizard radios operate on different frequencies)
SLEEK NEW DESIGN: The Plus III features a durable, side profile design with an unobtrusive, internal antenna minimizing visual obstruction between you and your subject. By utilizing an internal antenna, there's no chance to kink or break it when on location. The total height of the transceiver and antenna is less than 5.25 inches, and it weighs only 4 ounces, including batteries.
ON-CAMERA HOT SHOE MOUNTING: The Plus III mounts facing to the side to provide a smaller profile while shooting. This unique mounting position enables quick Channel and Mode selection as well as easy setting of zones. No other radio triggering system offers this kind of positive operation.
EXTERNAL POWER AND FIRMWARE UPGRADEABLE: The Plus III is normally powered by two AA (IEC:LR6) batteries. For long term remote placement, use a compatible AC adapter that plugs into the standard Mini-B USB port of the Plus III. The USB port also enables future upgrades of the Plus III operating system.

PlusX Wireless Radio Trigger Features:

10 Standard Channels: With the PlusX’s 10 Standard Channels you can work in your own “zone.” Claim your own channel for exclusive triggering when working with other photographers at crowded events. Use different channels for different setups or looks and select them simply and intuitively with the turn of a dial. And these 10 channels are compatible with every PocketWizard ever made* set to Standard Channels 1 – 10. (* radios of the same frequency)
Backlit Channel Dial: Setting channels is as easy as turning a dial. The backlit channel dial clearly displays the set channel and because the backlight consumes so little power, it stays on all the time for convenience.
Internal Antenna: The PlusX features a durable, side profile design with an unobtrusive, internal antenna minimizing visual obstruction between you and your subject. By utilizing an internal antenna, there’s no chance to kink or break it when on location. The total height of the transceiver and antenna is less than 4.2 inches, and it weighs only 4 ounces, including batteries.
Easily Connected / Cable Port: On your camera, the PlusX slides into the hot shoe with no cables required. For your remotes, it features one do-it-all miniphone (3.5mm or 1/8”) sync port. The miniphone connector is much more reliable than a PC connection and every PlusX comes complete with a miniphone-to-miniphone cable, a miniphone-to-phono (1/4" or 6.3mm) adapter for triggering the majority of modern flashes, and a miniphone to locking PC cable for triggering some remote speedlights or for using your PlusX on-camera when you can’t put it in a hot shoe. Other miniphone connector cables are available for major brands of lighting equipment in a variety of lengths. Dedicated remote camera triggering cables are also available for popular camera systems.
Auto-Sensing Transceiver : With our patented Auto-Sensing Transceiver Technology, the PlusX Transceiver is one smart radio. The PlusX will instantly and intelligently switch between transmitter and receiver modes keeping setup as simple as possible. The PlusX may be set to Transmit (Tx) only when needed.
Auto-Relay Mode: Our Auto-Sensing Transceiver Technology lets you trigger a remote camera in sync with remote flashes using only 3 PocketWizard radios: the one in your hands, a PlusX cabled to your remote camera, and the one connected to your remote flash. The PlusX cabled to your remote camera will receive a radio signal and trigger the camera’s motor drive, then switch to transmit mode and trigger your PocketWizard-connected remote flashes on the next channel up, all automatically. Start the sequence by simply pressing the TEST button of any PocketWizard transmitter in your hands. Remote cameras require motor drive cables. Find the correct cable for your gear using the PocketWizard Cable Finder.
Status Indicator/Battery Life Indicator: The PlusX features a tri-color LED status indicator that serves two functions. When the PlusX sends or receives a triggering signal, the LED will glow red. During normal operation, the indicator will blink a single green blink meaning it is operating normally and the battery life is above 50%. It will blink a double amber blink when the battery is below 50% but above 25% and it will blink three red blinks when the battery life is below 25% and it’s crucial to replace the batteries.
Transmit Only Mode: There are times when you only want your radio to transmit, usually when two or more photographers are sharing a set of lights. By enabling transmit only mode, you disable the receive and auto-relay functions to make sure all your radio is doing is transmitting.
Range and Reliability: PocketWizard Plus radios are known for their range and reliability. Although the PlusX costs less than other PocketWizard radios, you still get the range and reliability you’d expect.
Sync Speed: Ultra-fast microprocessors allow for reliable sync speeds of 1/250 for focal plane shutters and 1/500 for leaf shutters.
PocketWizard Compatible: The PlusX is compatible with all PocketWizard transmitters and receivers including PocketWizard-enabled photo gear from Profoto, Dynalite, Norman, Photogenic and Sekonic light meters. The PocketWizard Wireless System allows for total flexibility with whatever lights or cameras you may be working with.
Made in the USA: Like almost all PocketWizard radios, the PlusX is made in the USA. We keep production close to ensure the highest quality.

Plus III Transceiver Specifications:

FCC/IC model: 340.00 - 354.00 MHz
CE model: 433.42 - 434.42 MHz
32 channels
1-16 standard channels
17-32 selective Quad-Zone Triggering channels
Reverse compatible with all PocketWizard radios of the same frequency* using standard or Quad-Zone Triggering channels (*FCC and CE PocketWizard radios work on different frequencies)
Zones: A - B - C - D
Compatible with other PocketWizard radios with Quad-Zone Triggering channels
Antenna: Precision tuned internal coil
Display: Backlit 2.5cm (1.0") liquid crystal display (LCD)
Range: Up to 500 meters (1600 feet) (actual range is dependent on multiple factors including equipment, mode, environment, positioning, orientation and interference)
Sync Speed: Up to 1/250 for focal plane shutters; Up to 1/500 for leaf shutters
Triggering Speed: Up to 14.5 FPS
Contact Time: 62 milliseconds in normal operation; 2 milliseconds in High Speed Receive (HSR) Mode
LED: Green, Amber, Red status indications
Transmit Output Power: Less than 1 milliwatt (0.001 watt)
Power: Two (2) AA (IEC:LR6) alkaline recommended
NiMH, NiCAD, NiZn, Lithium acceptable (these chemistries may not report battery life accurately)
USB (optional AC adapter PW-AC-USB available)
Battery Life: Up to 50 hours (with alkaline batteries)
Max Port Sync Voltage: 300 Volts (Camera/Flash Port)
Max Current Handling: 1.0 A peak, 0.2 A (1/5 Amp or 200 milliamp) continuous current limited
Voltage Present: 3 volts, safe for use with all digital and film cameras
USB: USB 2.0 Mini-B Connector
Housing: High impact plastic with captive battery door
Weight: 120 grams (4 ounces) with batteries installed
Height: 13.3 cm (5.25")
Width: 5.1 cm (2.00")
Depth: 3.2 cm (1.25")
Operating Temperature: Above -15 C (5 F) and below 50 C (120 F).
Storage Temperature: Above -30 C (-22 F) and below 85 C (185 F) (without battery)
Input/Output: 3.5mm (1/8") stereo miniphone jack, hot shoe
Mounting: Hot shoe, lanyard/D-Ring loop, -20 threaded insert
Model: PW-PLUS3-FCC / 801-130
UPC: 893577001811

PlusX Wireless Radio Trigger Specifications:

Frequency: FCC/IC: 344.04 MHz North America; CE: 433.62 MHz EU/Asia/Other
Channels:10 channels
Reverse compatible with all PocketWizard radios using Standard channels using same frequency.
Zones: Single zone
Antenna: Precision tuned internal coil
Channel Setting: Backlit rotating dial
Range: Up to 500 meters (1600 feet). Actual range is dependent on multiple factors including equipment, mode, environment, positioning, orientation and interference.
Sync Speed: Up to 1/250 for focal plane shutters; Up to 1/500 for leaf shutters
Triggering Speed: Up to 14.5 frames per second (FPS)
Contact Time: 62 milliseconds in normal operation
LED: Green, Amber, Red status indications
Solid Red: Triggering signal sending or receiving
Single Green Blink: Status OK, > 50% battery life
Double Amber Blink: Battery life < 50% but > 25%
Triple Red Blink: Battery life < 25%, change batteries
Transmit Output Power: Less than 1 milliwatt (0.001 watt)
Power: Two (2), AA (LR6), 1.5v alkaline recommended; NiMH, NiCAD, NiZn, Lithium acceptable (these chemistries may not report battery life accurately)
Battery Life: Up to 100 hours (with alkaline batteries)
Max Port Sync Voltage: 300 Volts (Camera/Flash Port)
Mac Current Handling: 1.0 A peak, 0.2 A (1/5 Amp or 200 milliamp) continuous current limited
Voltage Present: 3 volts, safe for use with all digital and film cameras
Housing: High impact plastic with captive battery door
Weight: 3.9 ounces (110 grams) with batteries installed
Height: 4.2 inches (10.7 cm)
Width: 2.1 inches (5.3 cm)
Depth: 1.2 inches (3.0 cm)
Operating Temperature: Above 5° F (-15° C) and below 120° F (50° C).
Storage Temperature: Above -22° F (-30° C) and below 185° F (85° C) (without battery)
Input/Output: 3.5mm (1/8") stereo miniphone jack, hot shoe
Mounting: Hot shoe, lanyard/D-Ring loop, 1/4-20 threaded insert
RoHS Compliant: Yes
UPC: 893577001958
Model: PW-PLUSX-FCC / 801-129
