Item Includes:
- Rokinon 20mm T1.9 Cine DS Lens for Micro 4/3rds
- Front Lens Cap
- Rear Lens Cap
- Lens Hood
- Lens Pouch
- Rokinon 1-Year Manufacturer Warranty
Overview

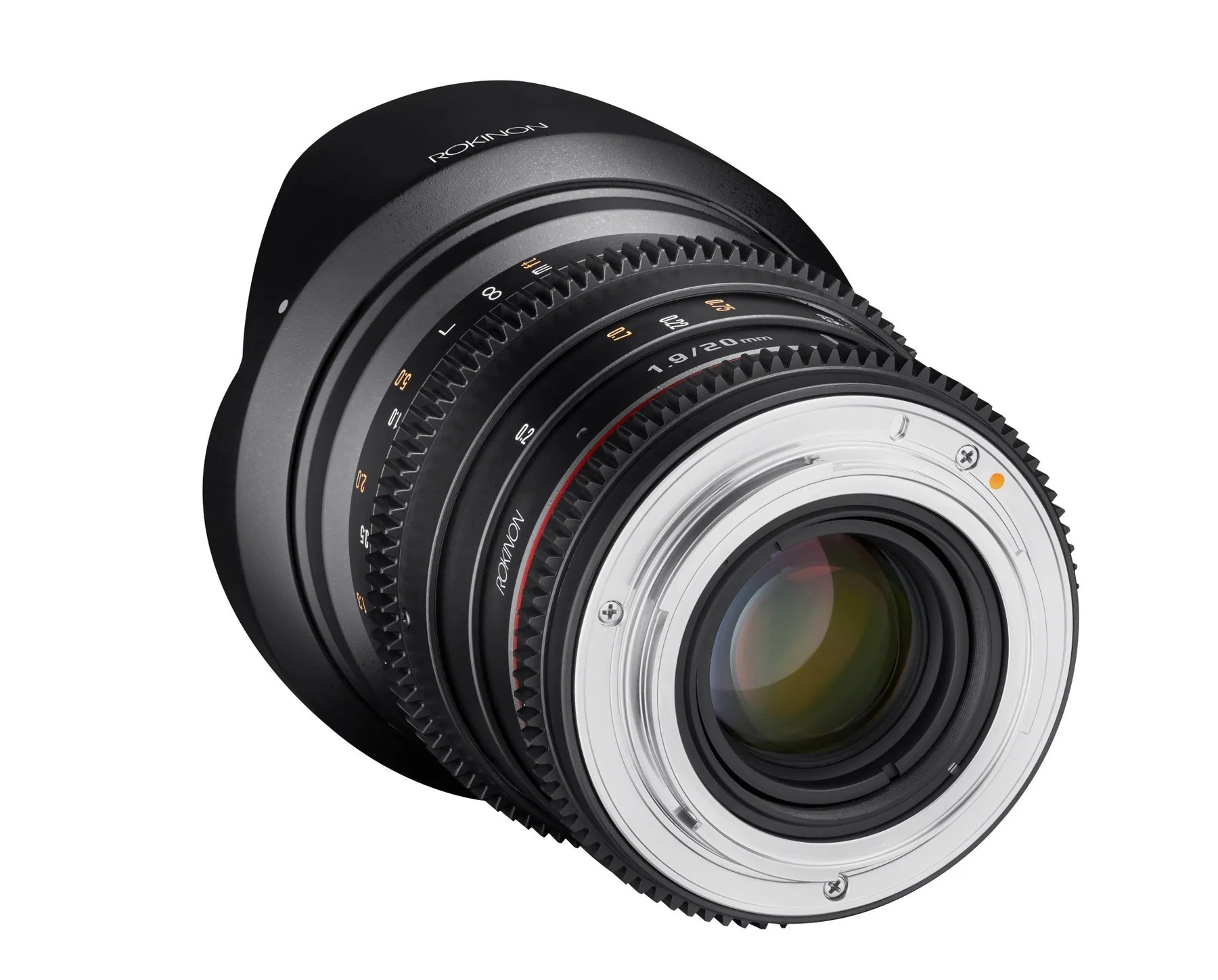

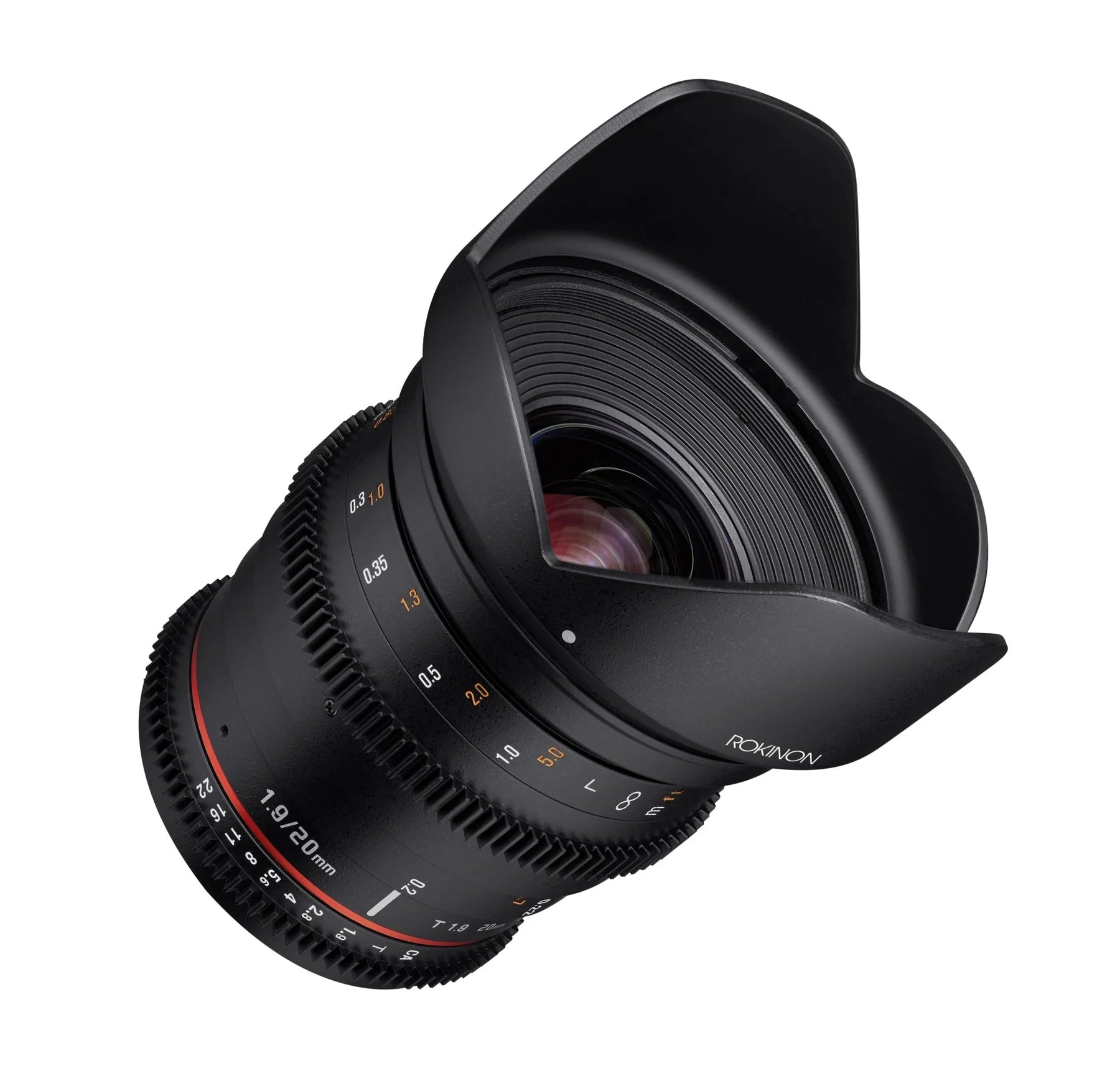

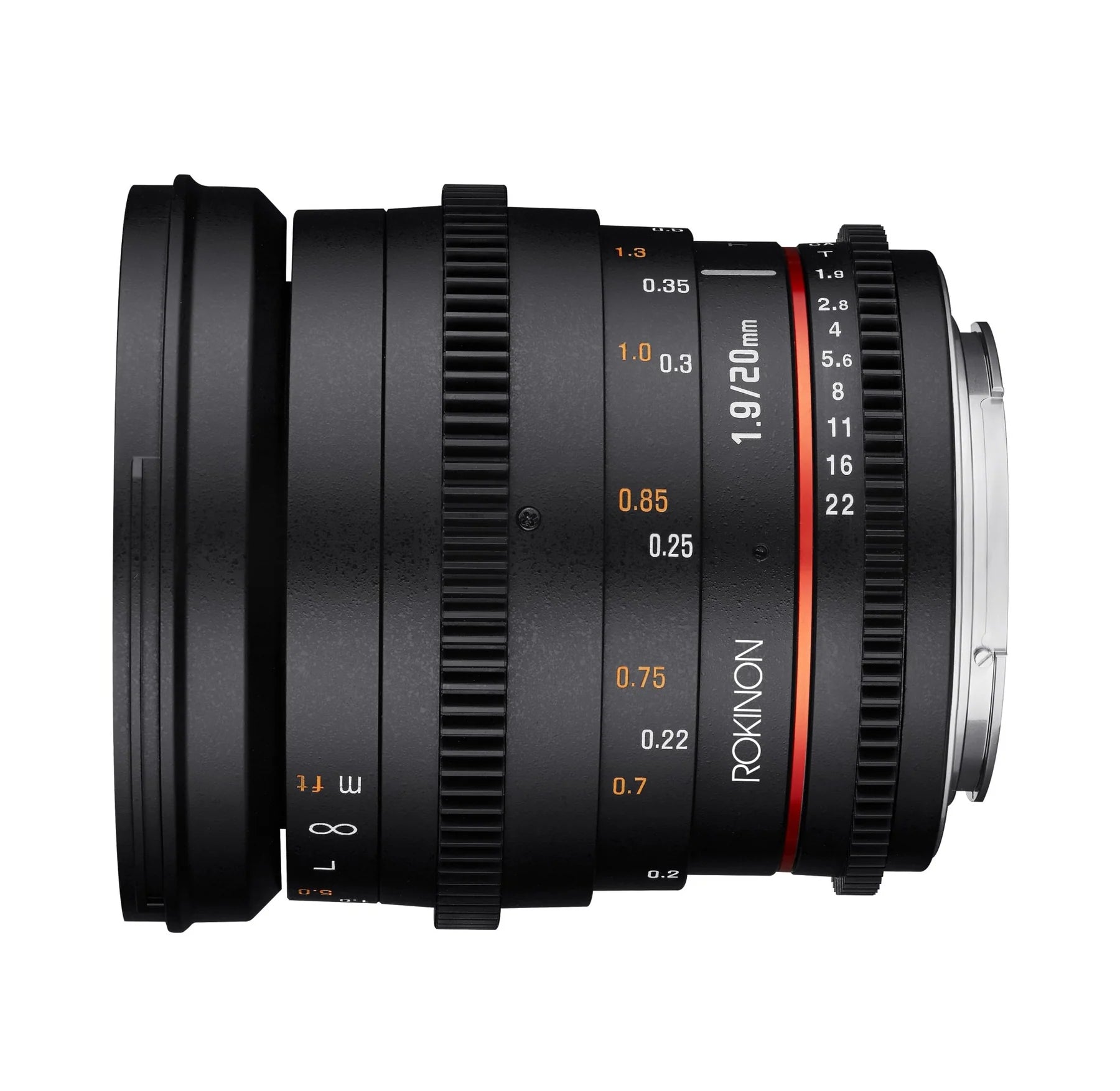

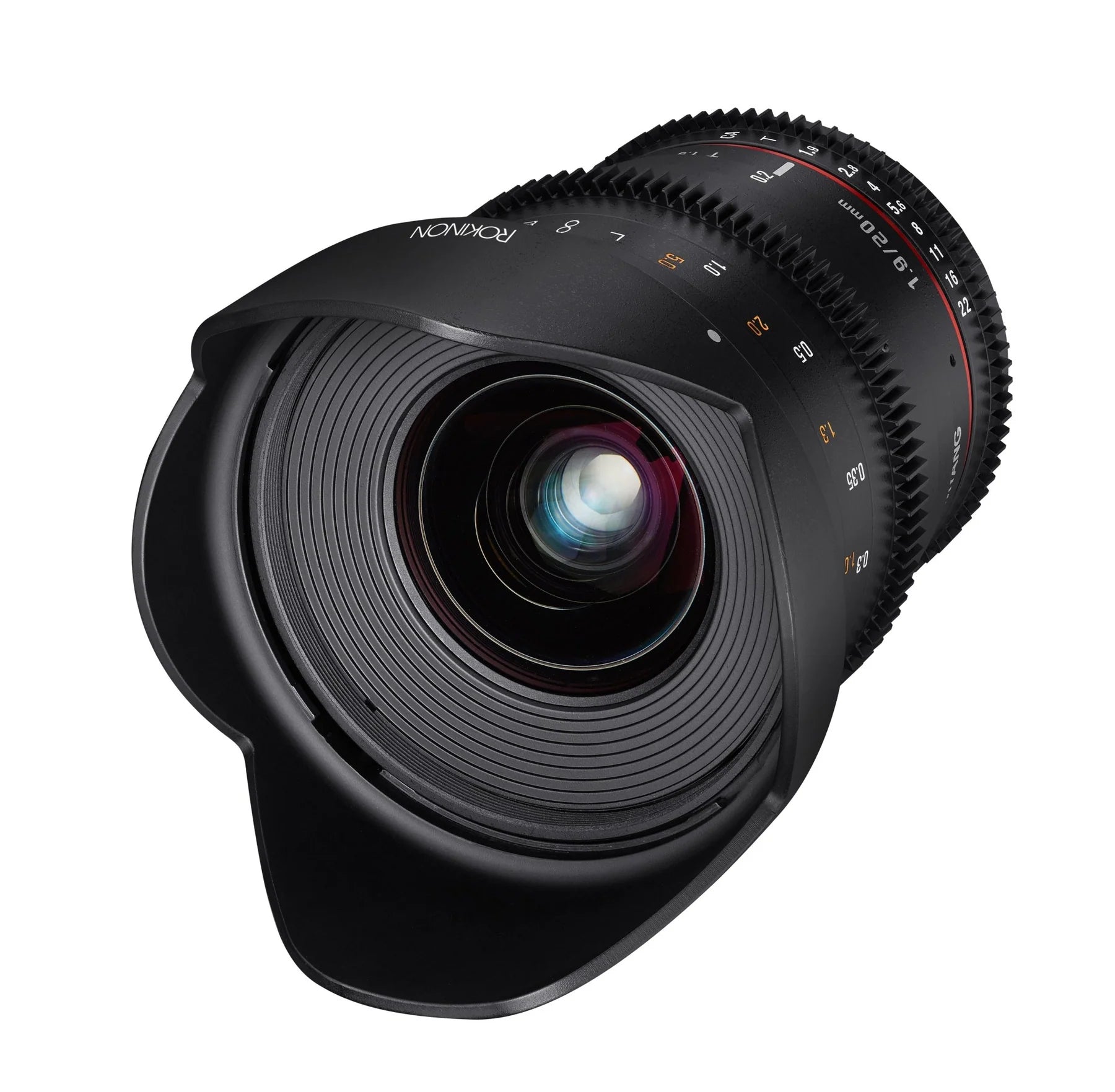

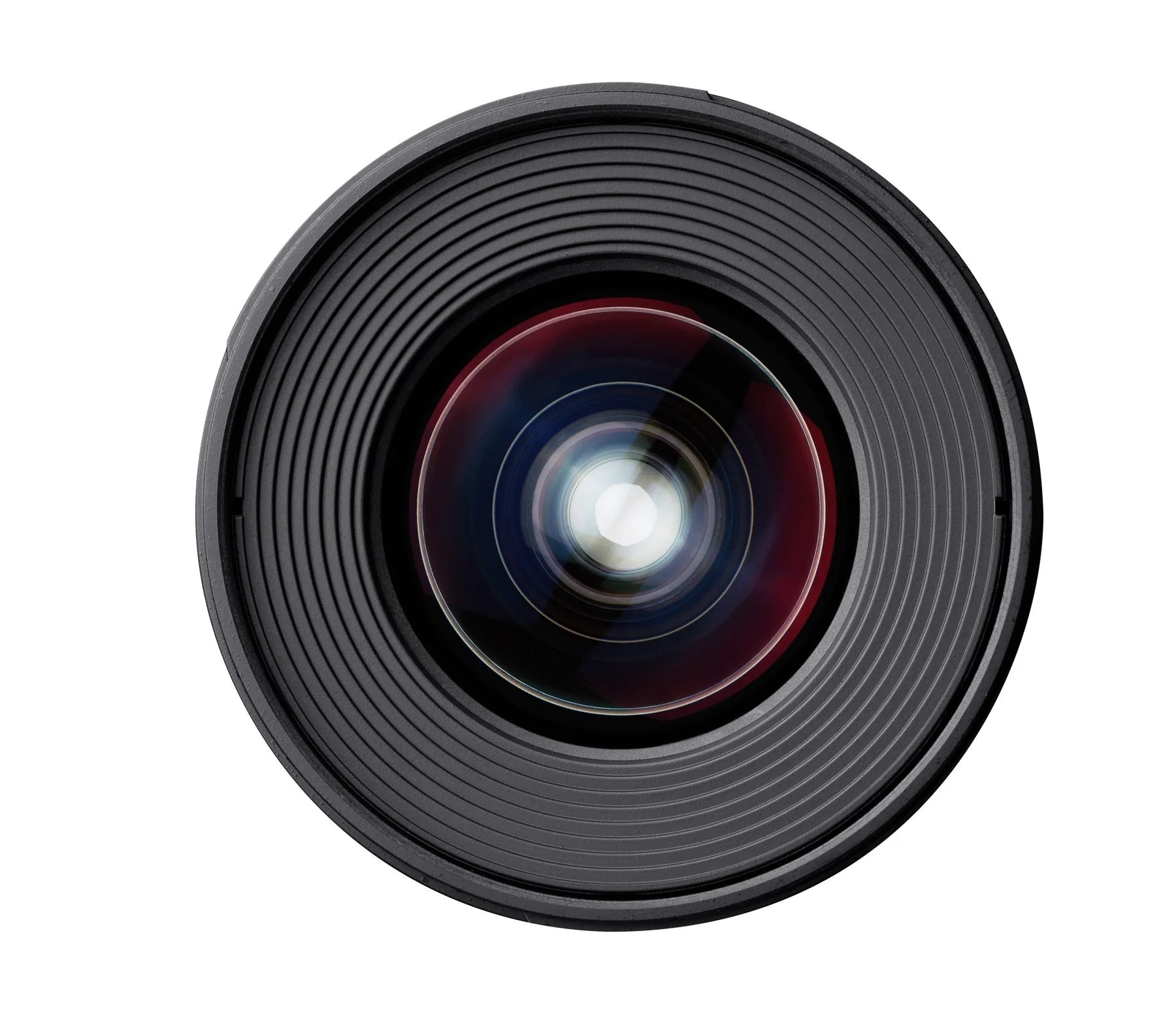

Featuring consistent color rendition from lens to lens, the Rokinon 20mm T1.9 Full Frame Wide Angle Cine DS Lens utilizes a multi-layer coating process. This lens is the perfect solution for gradually assembling a set of lenses, thanks to its industry standard geared focus and iris rings that are positioned similarly to other Rokinon Cine DS lenses. To assist focus pullers working with both sides of the lens, the aperture and focus scales are conveniently marked on both sides. With a 94.8° angle of view on full-frame cameras, this 20mm lens boasts hybrid aspherical lenses that produce sharply defined images with minimal distortion and chromatic aberrations. Additionally, it offers a minimum focus distance of just under 8" and a removable petal-shaped lens hood for protection against flares when not using a matte box. The lens also has a 77mm filter ring for added versatility.
Features:
- 20mm lens with a 94.8° angle of view when used with full-frame cameras.
- Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
- Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
- Clickless aperture ring for smooth iris pulls.
- A minimum focusing distance of 7.8" allows you to get up close to your subject.
- A removable petal-type lens hood provides flare protection without a matte box.
Specs:
| Aperture Range | T1.9 ~ 22 | ||||
| Optical Construction | 13 Elements in 12 Groups | ||||
| Minimum Focusing Distance | 0.2m (0.65ft) | ||||
| Filter Size | 77.0mm | ||||
| Maximum Diameter | 83.0mm | ||||
| Mount | Nikon F | Canon EF | Sony E | MFT | |
| Angle of View | 35mm | 94.8˚ | 94.8˚ | 94.8˚ | - |
| APS-C | 66.9˚ | 70.3˚ | 70.3˚ | - | |
| Four-Thirds (4/3”) | - | - | - | 56.1˚ | |
| Length (mm) | 85.9mm | 88.4mm | 114.4mm | 113.2mm | |
| Weight (g) | 508g | 518g | 546g | 541g | |
| Gear | Module | 0.8mm | |||
| A | 7mm | ||||
| B | 4mm | ||||
| C | 43.8mm | ||||
| D | 8mm | 10.5mm | 36.5mm | 35.3mm | |
| Focus Ring Diameter | 81.6mm | ||||
| Aperture Ring Diameter | 70.4mm | 73.6mm | |||
