Item Includes:
- Rokinon XEEN Anamorphic 50mm T2.3 Pro Cinema Lens (PL Mount)
- Rokinon 3-Year Manufacturer Warranty

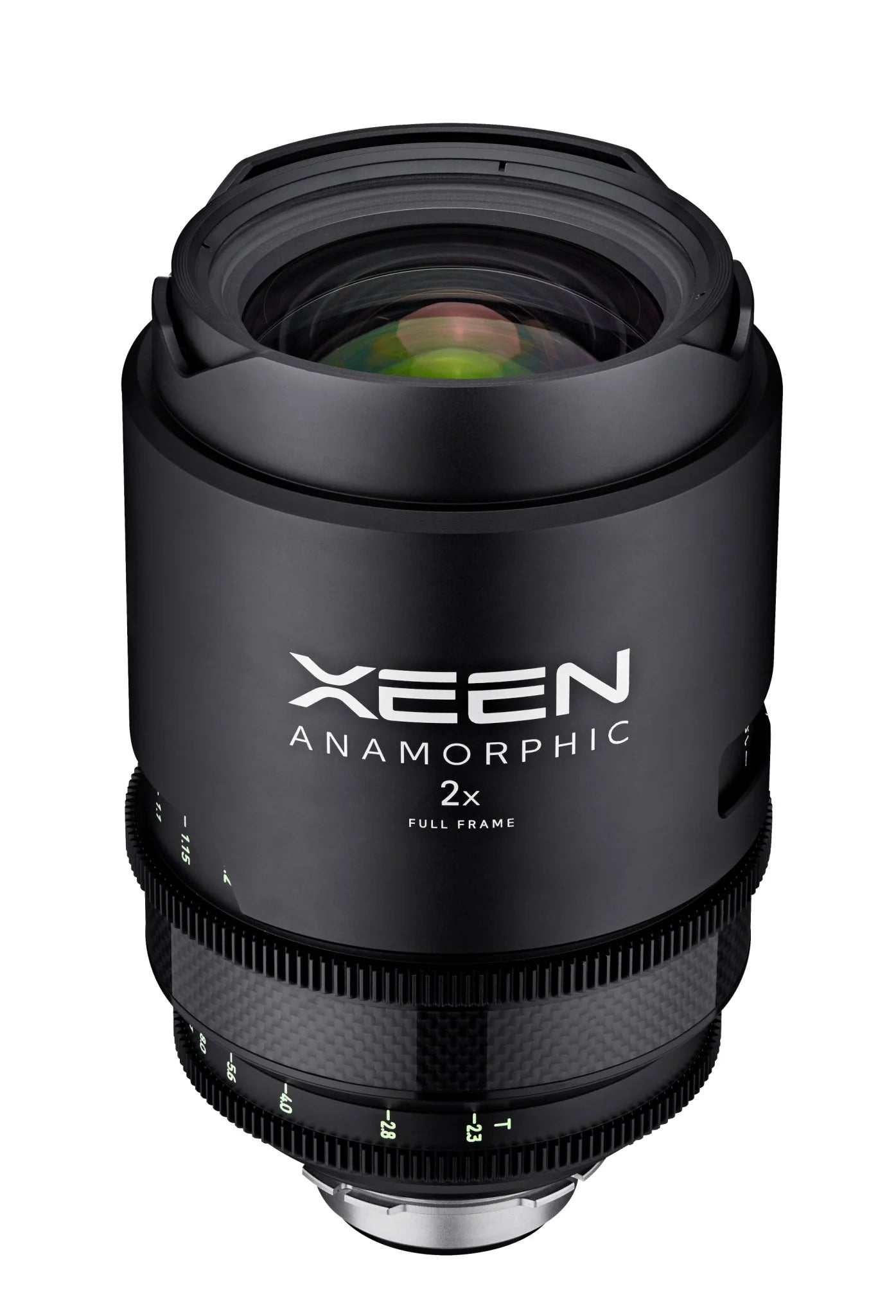

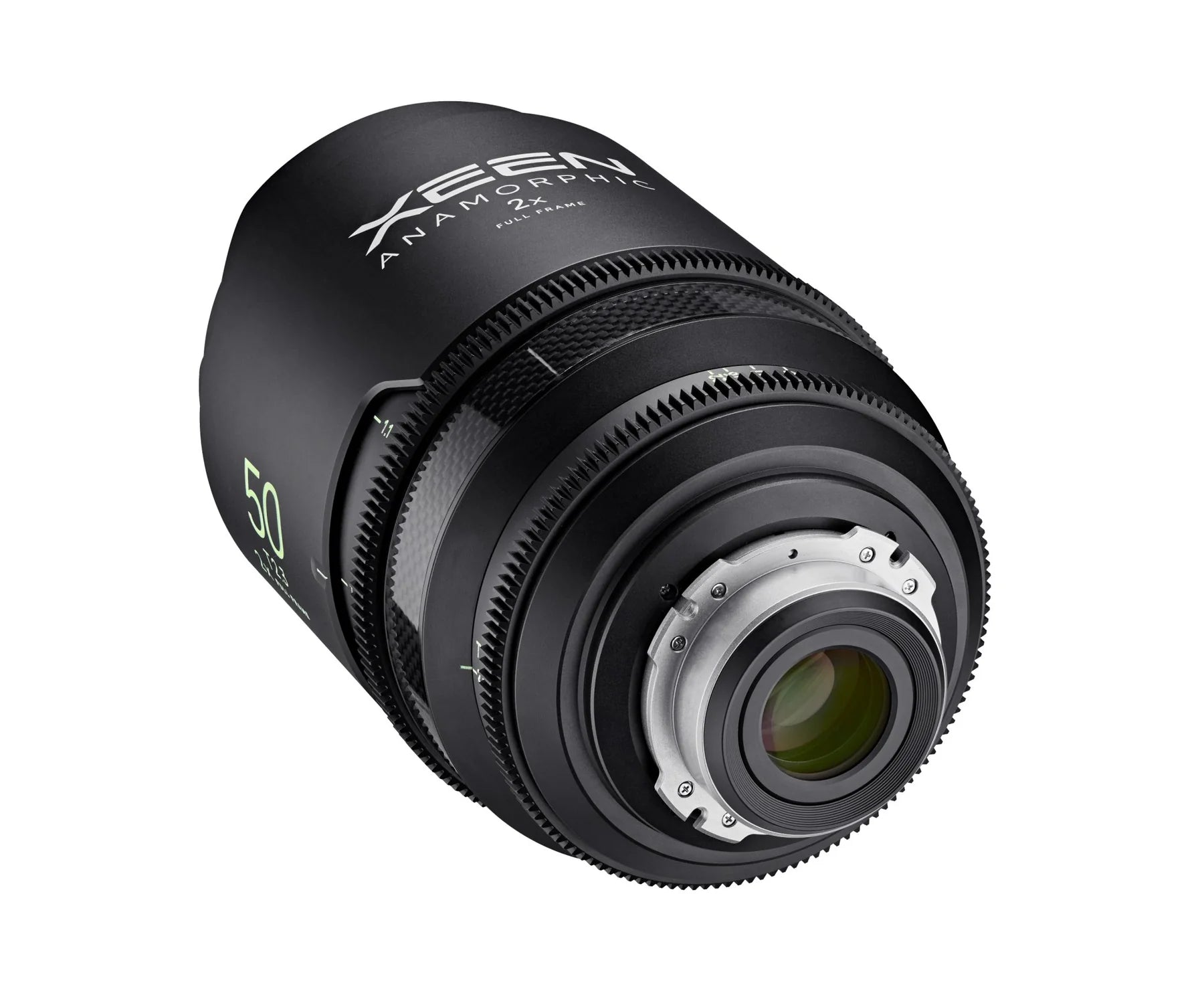

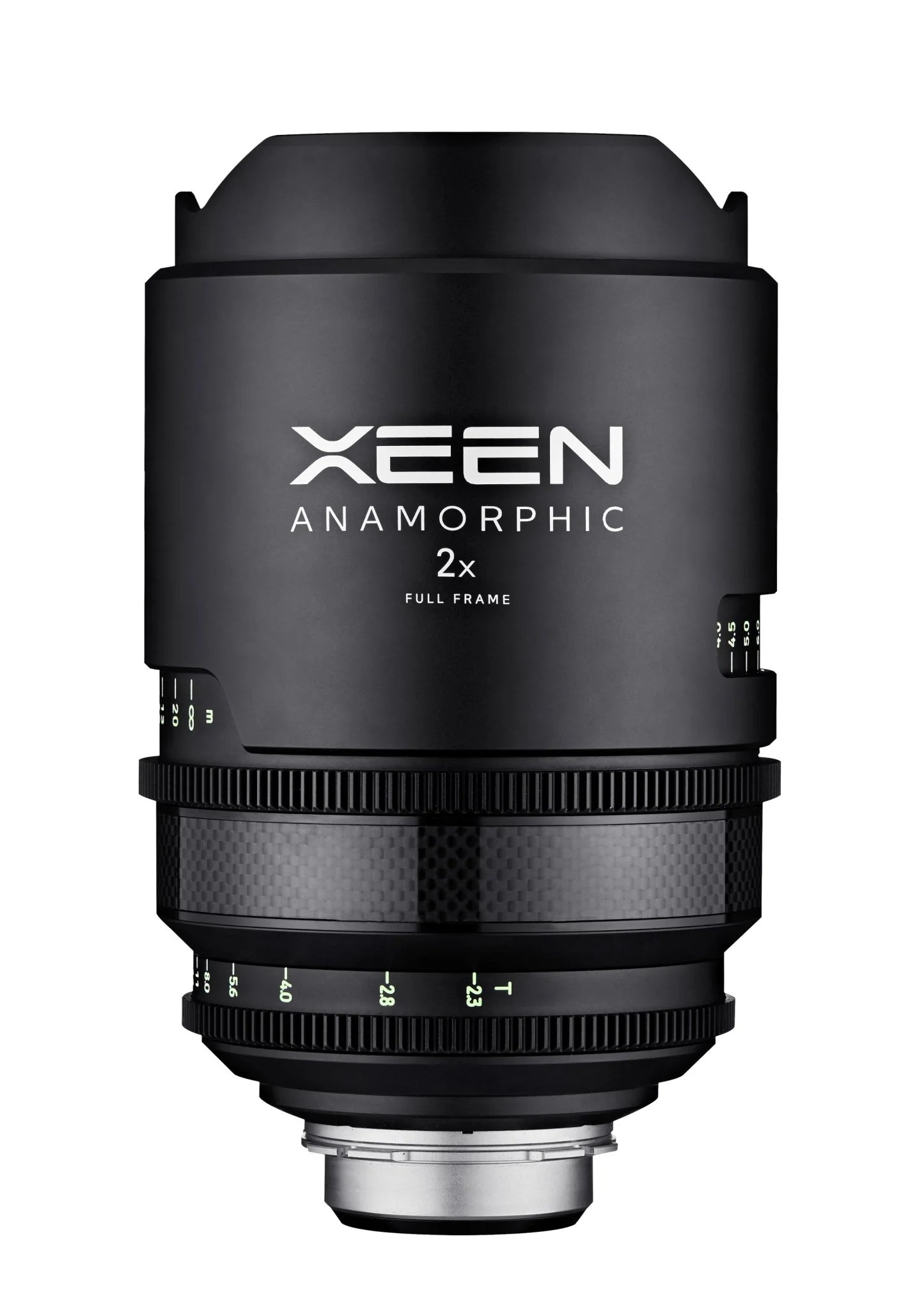

XEEN Anamorphic 50mm T2.3 2x for high-end digital cinematography
The XEEN Anamorphic 50mm T2.3 opens up endless new creative opportunities, making possible shots that would have previously been considered impossible. This new XEEN Anamorphic lens covers full-frame and larger sensors, is available in an interchangeable PL-mount.
The important and distinguishing visual facet of anamorphic images is the appearance of out-of-focus background elements or bokeh. The newly developed iris with 15 aperture blades, creates perfectly oval and evenly illuminated out-of-focus highlights. This ensures a pleasing bokeh that filmmakers will enjoy manipulating creatively. After being de-squeezed, the XEEN Anamorphic 50mm T2.3 lens covers 2,55:1 original cinematic cope ratio in 35mm full-frame sensor.
The XEEN Anamorphic 50mm T2.3 features a Ø114mm, non-rotating front diameter, which is ideal for use with a 4x5 Matte Box. Also, the front barrel design made of Carbon fiber material not only adds to the rigidity of the lens but also adds a sense of luxury. In addition, the ultra-bright luminous font allows for convenient use in dark environments.
Specs:
| Model Name | XEEN Anamorphic 50mm T2.3 | |
| Maximum T-Stop | T2.3 | |
| Image Circle | Ø 43.2mm | |
| Angle of View | Full Frame | H: 68.4˚, V: 26.9˚ |
| Super 35 | H: 50.0˚, V: 20.5˚ | |
| Focusing Range | ∞ to 1.0 m | |
| ∞ to 3.3 ft. | ||
| Front Diameter | Ø 114 mm | |
| Number of Aperture Blades | 15 | |
| Rotation Angle of Focus Ring | 300° | |
| Rotation Angle of Aperture Ring | 89.5° | |
| Mount | PL | |
| Size | Ø128.0 x 198.6 mm | |
| Weight (without Lens cap) | 3.9 kg / 8.50 lbs. | |
| Squeeze Ratio | X2 | |
| Focus Drive Gear | 158 teeth 0.8 metric module x 8.0mm wide x 121mm from the image plane | |
| Iris Drive Gear | 136 teeth 0.8 metric module x 7.0mm wide x 75mm from image plane | |
