Item Includes:
- 2 x Blink 500 TX Transmitter with Built-In Microphone and Clip
- 1 x Blink 500 RX Receiver with Built-In Clip and Camera Shoe-Mount
- 2 x SR-M1 Omnidirectional Lavalier Microphone
- 2 x Alligator-Style Lavalier Microphone Clip
- 2 x Foam Lavalier Windscreen
- 1 x 1’ (30.5 cm) Gold-Plated 3.5mm TRS to TRS Output Cable for Cameras
- 1 x 1’ (30.5 cm) Gold-Plated 3.5mm TRRS to TRRS Output Cable for Smartphones and Tablets
- 3 x 1’ (30.5 cm) Gold-Plated USB-C to USB-A Charging Cables
- 1 x Pairing Pin
Overview:

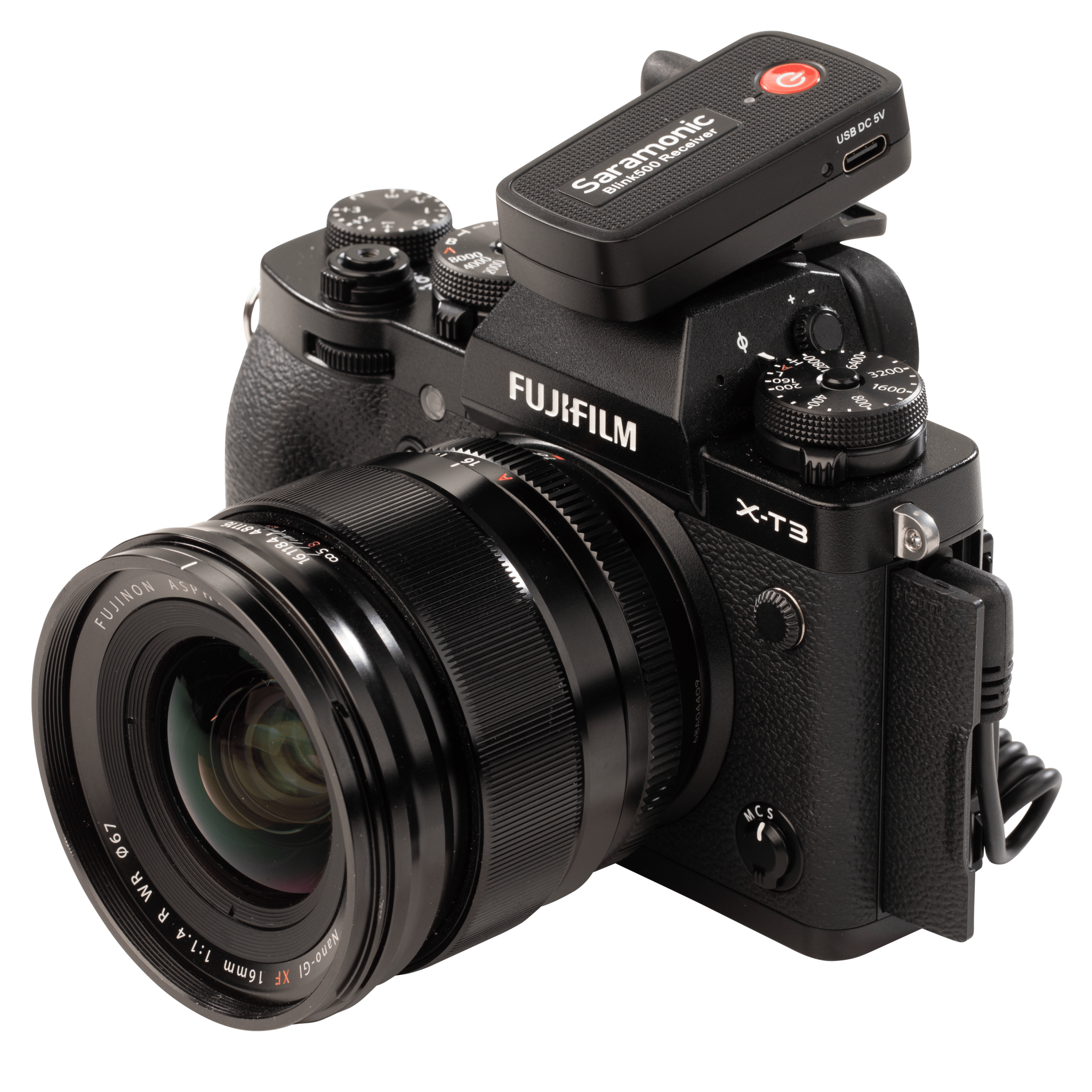

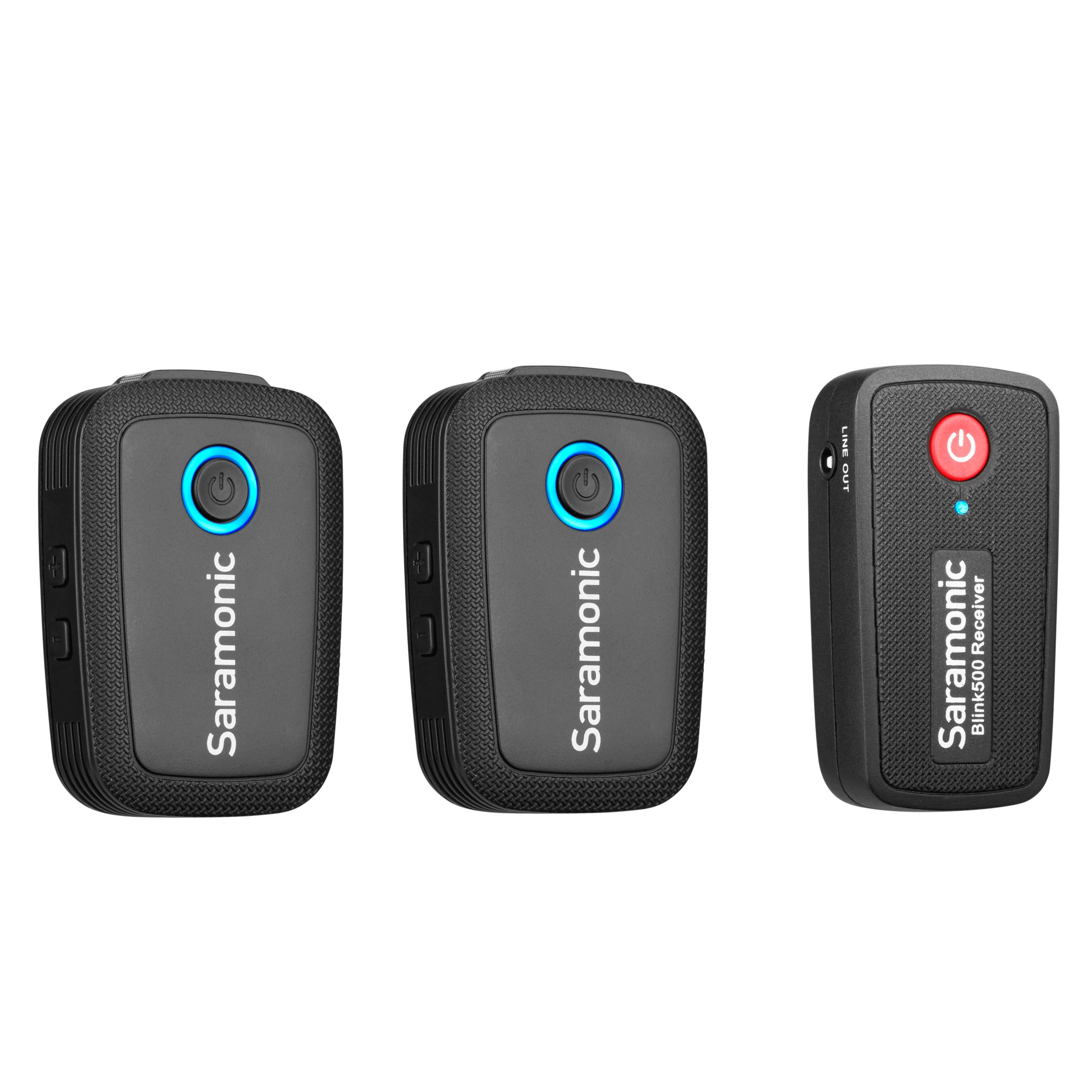

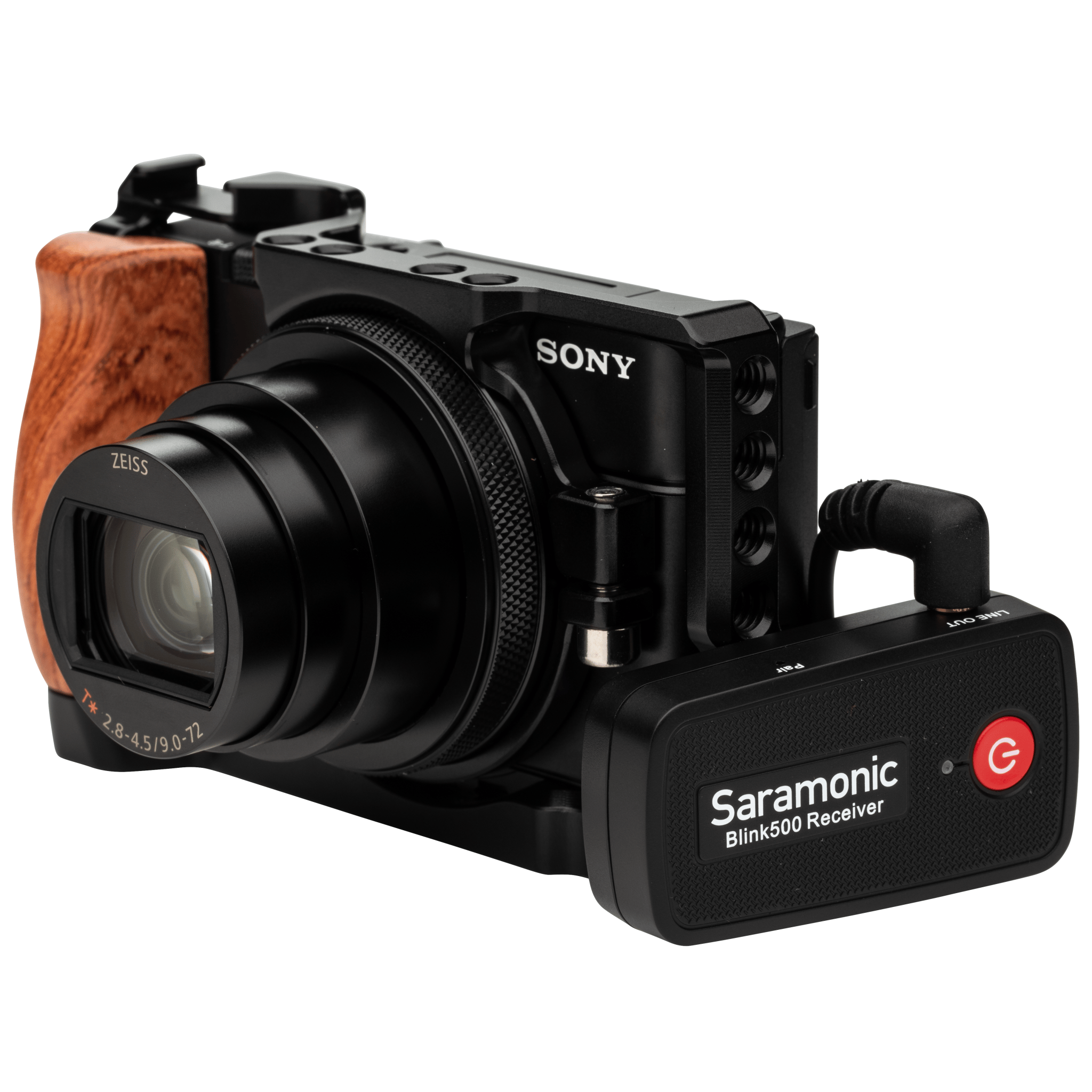

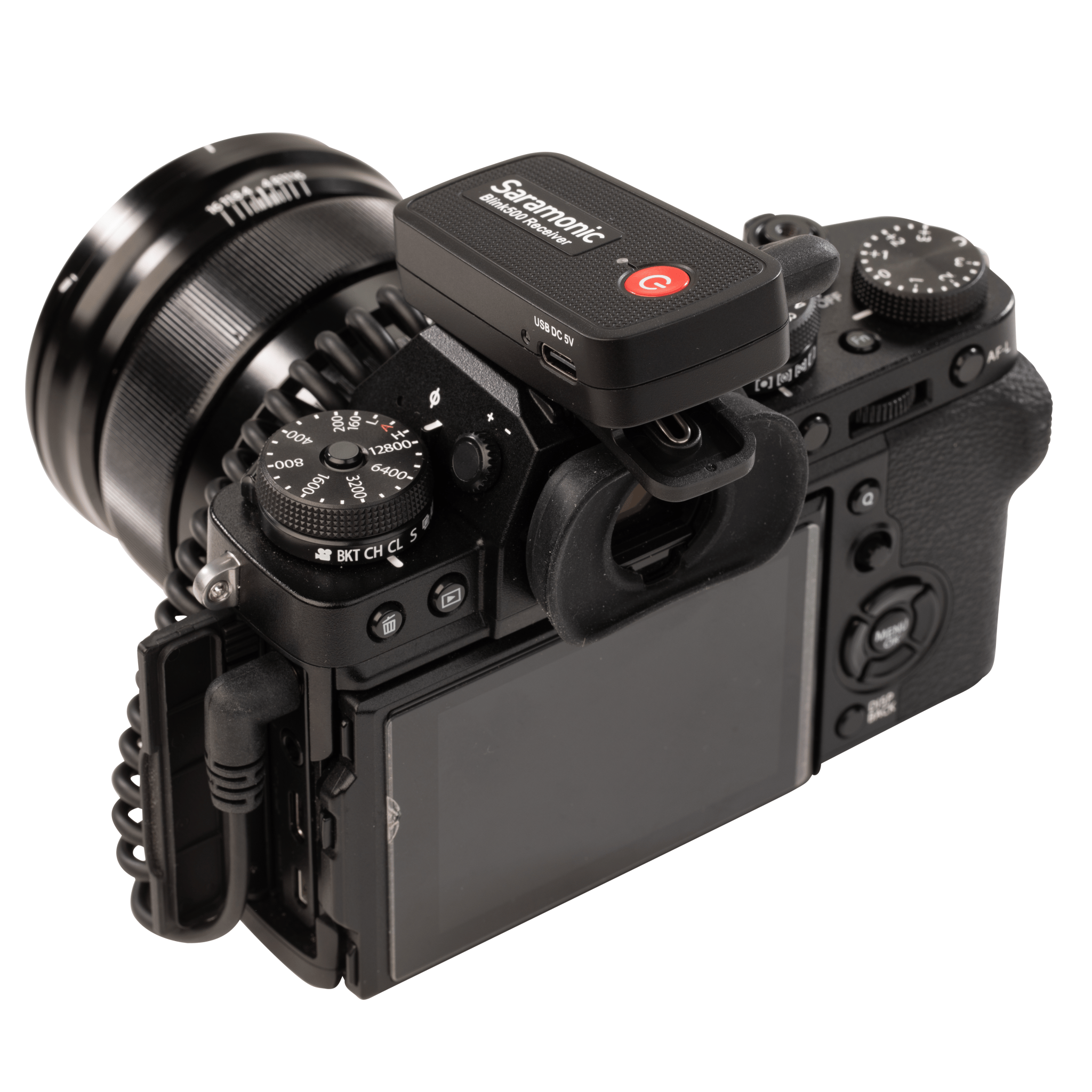

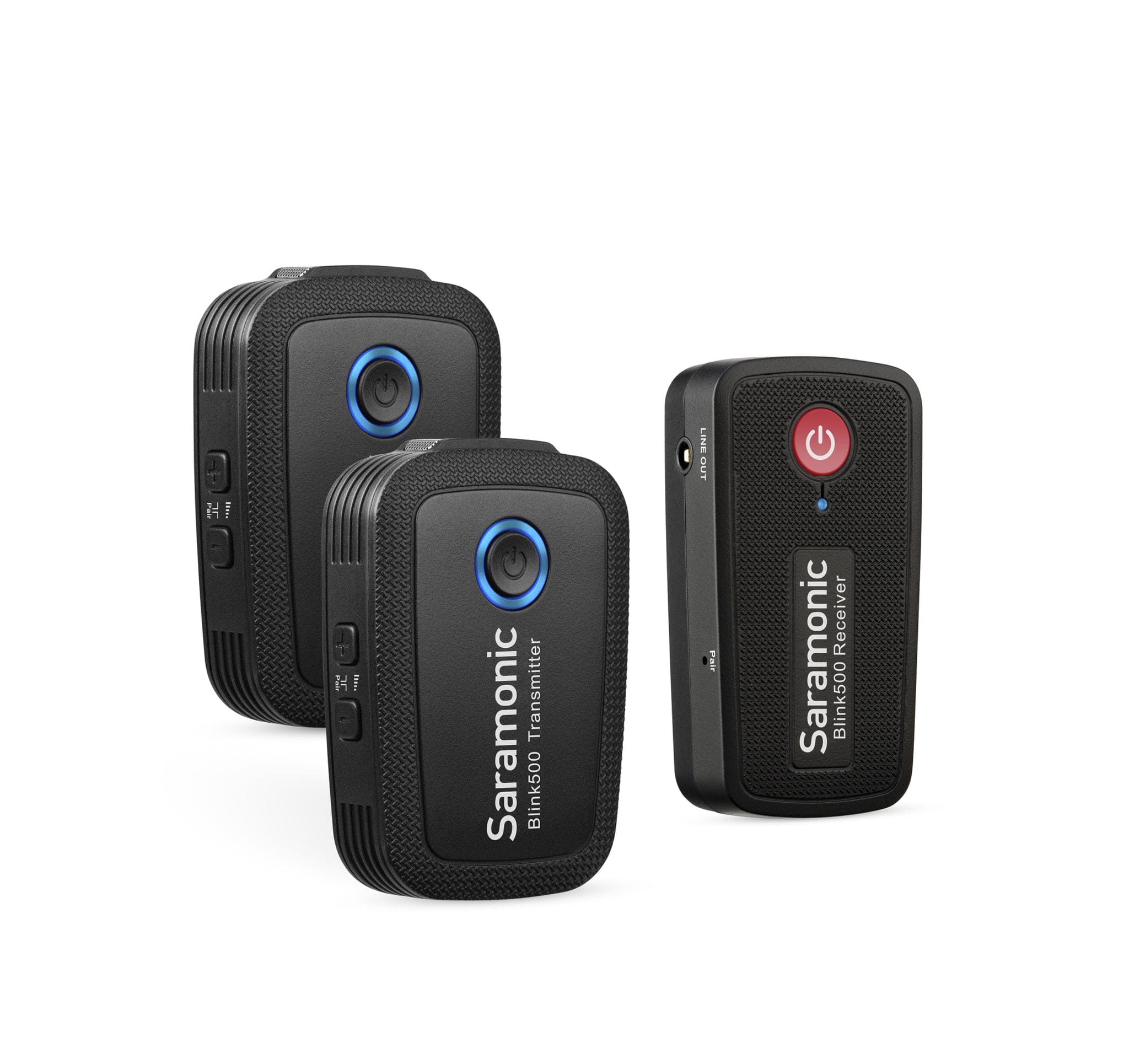

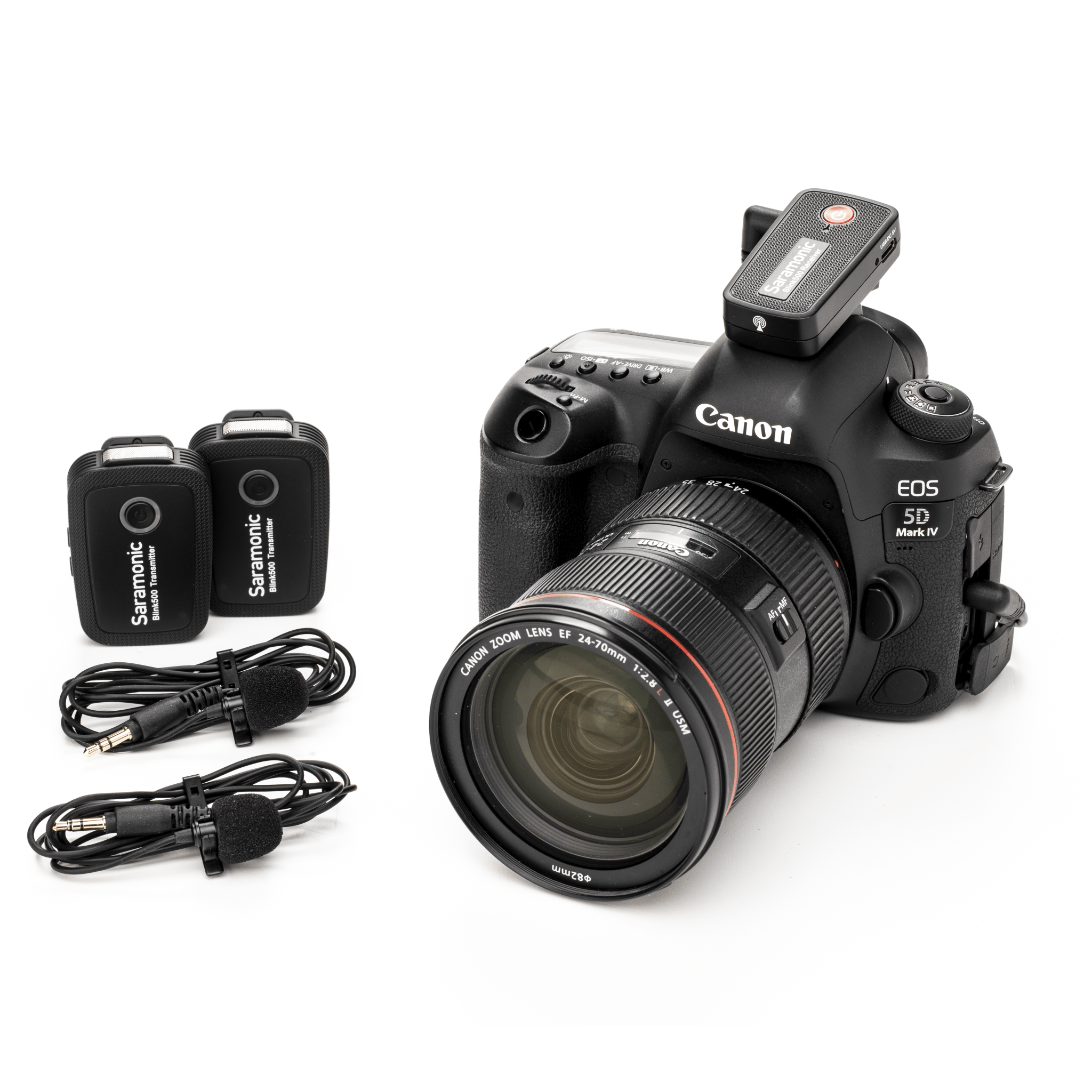

If you want an extremely small, feather-weight wireless microphone system that delivers broadcast-quality sound to use with cameras and mobile devices, with the ability to handle two wireless transmitters so you can put mics on two separate people, nothing is capable of doing this except for the Saramonic Blink 500 B2. It comes with two clip-on wireless transmitters that have built-in mics, two professional lavalier microphones, and a dual-channel receiver that mounts to the shoe of your camera. You can put mics on two separate people, and it will work perfectly with the included ultracompact dual receiver.
Transmitter Specifications:
Frequency: 2.4GHz
Oscillator Type: Gaussian Frequency-Shift Keying (GFSK)
RF Frequency Band: 2400 to 2483.5 MHz
RF Output Power: 10 mW
Signal to Noise Ratio: =70dB
Voice Delay: =6ms
Reference Audio Input Level: -30 to -42dBv (Microphone Input, 0 dB Attenuation)
Audio Gain Control: 11dB, 18dB, 25dB
Plug-In Power: Yes, 1V
Distortion: =0.1%
Digital Resolution: 24-bit / 48kHz
Frequency Response: 20Hz to 16kHz
Max Operating Range: 98.4’ (30m) with Obstacles, 164’ (50m) in Open Area
Max Number of Simultaneous Systems: 18 (up to 36 Microphones)
Antenna: Built-in 1/4? Wire Antenna
Buttons: On / Off / Pair, Volume Up, Volume Down
Battery: Built-in Li-ion 3.7V / 400mAh
Approx. Battery Life: 5 hours
Charging Connector: USB Type-C (1.5 hours to be fully charged)
Input: 1/8'' (3.5mm) Microphone Input
Indicators: 4 x Blue LEDs: Indicates Power and Audio Level, 1 x Red LED: Indicates Low Battery Level, 1 x Green LED: Flashing when Charging / Off when Charge Finished
Microphone: Built-In Pressure Operated Electret Condenser
Microphone Pickup Pattern: Omnidirectional (Built-In Microphone and External Lavalier)
Microphone Frequency Range: 50Hz-18KHz (Built-In Microphone and External Lavalier)
Microphone Equivalent Noise Level: >58dB (Built-In Microphone and External Lavalier)
Maximum SPL: 120dB (Built-In Microphone), 110dB (External Lavalier)
Mounting Clip: Built-In
Operating Temperature: 0? to 50?
Storage Temperature: -20? to +50?
Dimensions: 2.5 x 1.7 x .65” (63 x 43 x 16.5mm)
Weight: 1.2 oz (34g)
Receiver Specifications:
Frequency: 2.4GHz
Oscillator type: Gaussian Frequency-Shift Keying (GFSK)
RF Frequency Band: 2400 to 2483.5 MHz
Signal to Noise Ratio: =70dB
Voice Delay: =6ms
Distortion: =0.1%
Digital Resolution: 24-bit / 48kHz
Frequency Response: 20Hz to 16kHz
Max Operating Range: 98.4’ (30m) with Obstacles, 164’ (50m) in Open Area
Antenna: Built-In 1/4? Wire Antenna
Buttons: On / Off / Pair
Battery: Built-in Li-ion 3.7V / 400mAh
Approx. Battery Life: 5 hours
Charging Connector: USB Type-C
Output: 1/8' 3.5mm Jack (Headphone Compatible)
Audio Output Level: 5dB
Indicator: 1 LED, Blue. Flashing quickly: Paring, Flashing: Not Paired with any TX, Solid Blue: Paired with TX
Operating Temperature: 0? to 50?
Storage Temperature: -20? to +50?
Dimensions: 2.4 x 1.3 x .61” (62 x 33 x 15mm)
Weight: 1.09 oz (31g)
