Item Includes:
- 2x Portable Receiver (RX9)
- 4x Body-pack transmitter (TX9)
- 4x Omni-Directional Lavalier Microphone
- 2x XLR-BMP audio output cable
- 2x 3.5mm plug-bmp audio cable
- 6x Belt clip
- 4x Wind screen
- 2x Shoe Mount Adapter
- 4x Microphone holder clip
- Saramonic SR-AX100
- 6x 2 Pack Kodak Max AA Batteries
- JZS Electronic CC-20 Microfiber Cleaning Cloth
- 1 Year Limited Warranty
UwMic9 Overview:
The Saramonic RX9+TX9+TX9 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.
The system includes a camera-mountable, wireless receiver, 2 wireless body-pack transmitters and 2 clip-on lavalier mics.
The Saramonic UwMic9-RX9 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver.
Equipped with an auto-scan function, the RX9 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.
This compact transmitter employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.
AX100 Overview:

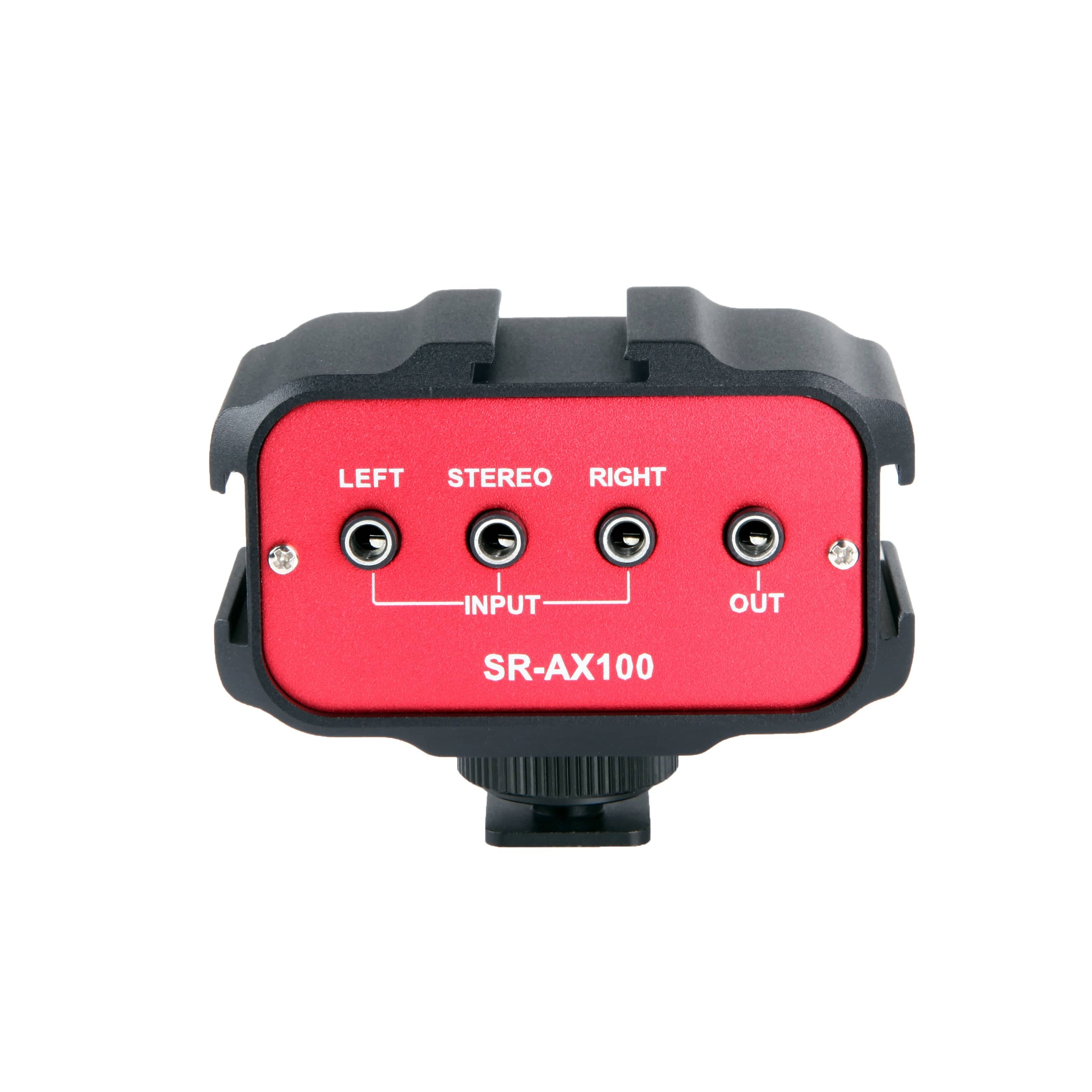

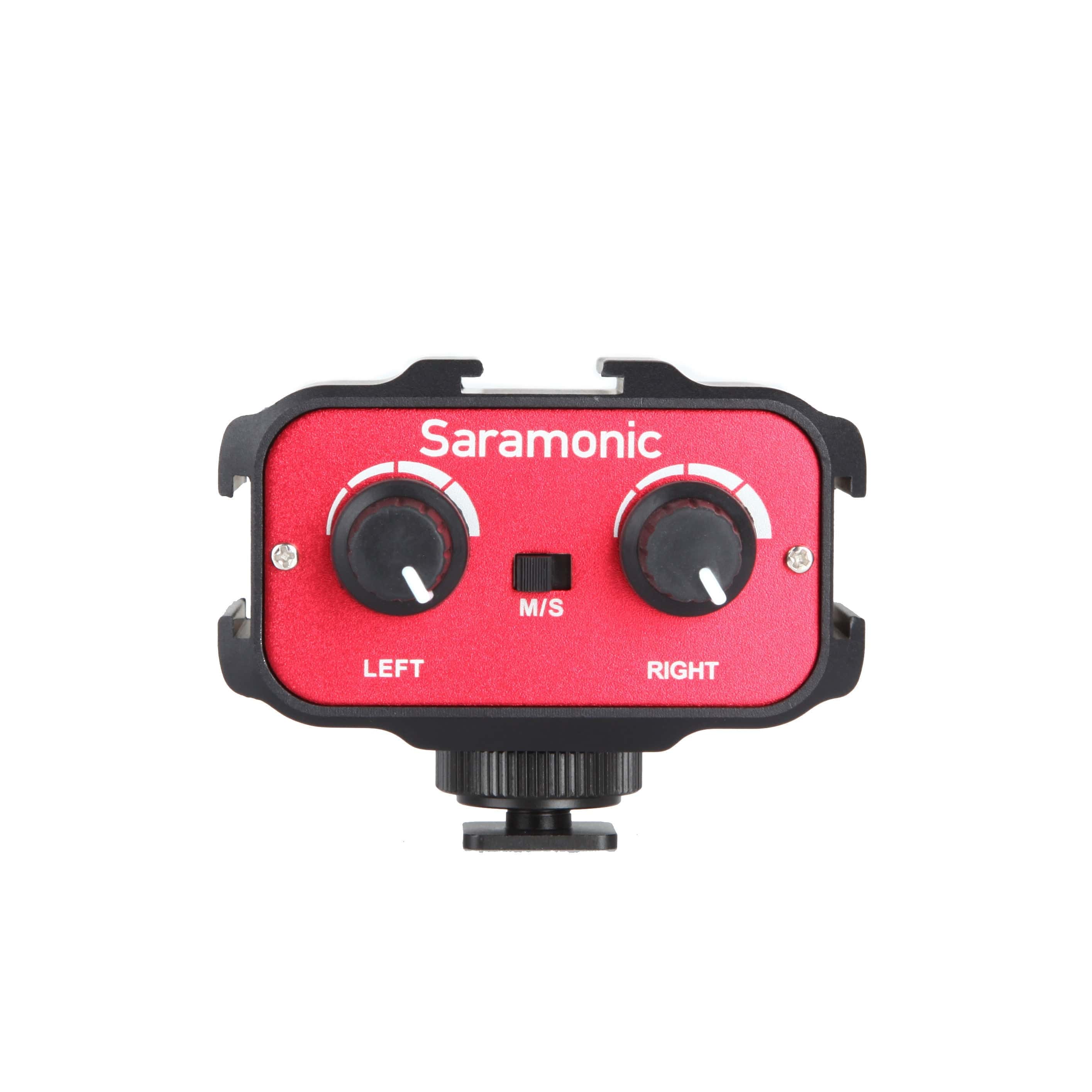

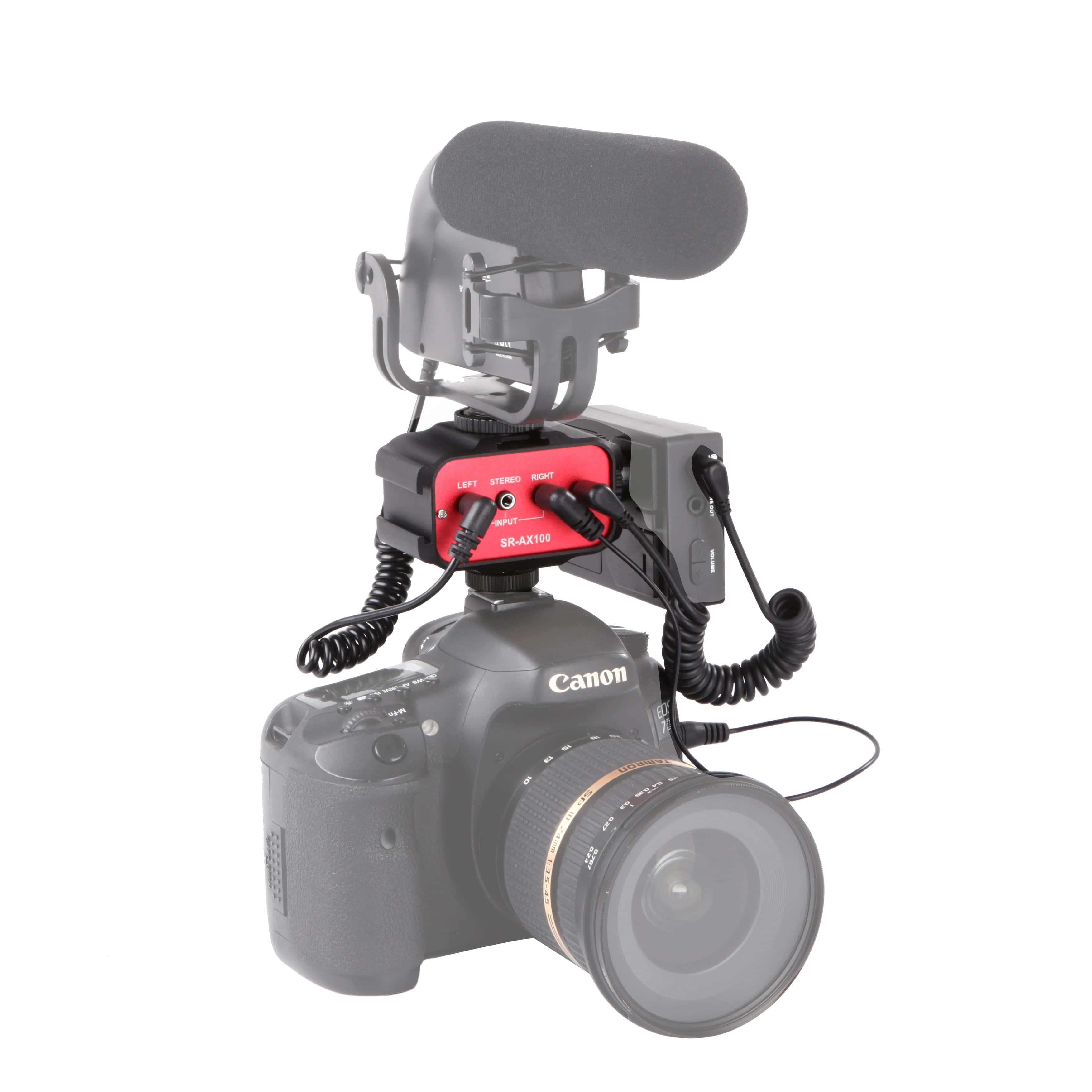

The Saramonic SR-AX100 is a 2-channel audio adapter ideal for recording professional audio on any DSLR or camcorder that has a standard mounting shoe and built-in audio jack.
This adapter provides you with a compact dual-mic mounting and audio mixing solution, which allows you to easily mount and control two mics or wireless receivers.
The SR-AX100 features a passive circuit, making it virtually noise free, and does not require batteries or a power source.
UwMic9 Features:
- Reliable, broadcast-quality audio
- Wireless transmitter with lavalier microphone
- 96 selectable channels in 2 groups
- Operates over 330' in open areas, or 200' with obstacles
- Easy to read LCD displays
AX100 Features:
- Dual trim control knobs let you easily adjust the signal to each channel to set your optimum recording levels
- Select mono or stereo output mode
- Three integrated mounting shoes enable you to attach a variety of mics or wireless receivers
UwMic9 Specifications:
- Weight: 0.4 oz
- Channels: 96 channels
- Groups: A and B groups
- Oscillator Type: PLL synthesizer
- Output: 3.5mm mini jack
- Antenna: 1/4" wire antenna
- Audio Output Level: -60 dBV
- Headphone Output Level: 30mW (16 ohm)
- Frequency Range: 614 MHz - 696 MHz
- Sensitivity: -95 dBm
- Signal to Noise Ratio: 70 dB or more
- Voice Delay: 12 ms
- Reference Deviation: +/- 5 kHz
- Frequency Response: 40 Hz to 18 kHz (+/- 3dB)
- Distortion: 0.5% or less
- Spur Suppression: -60 dB
- Weight Without Batteries: 7.7 oz
- Battery: 2 AA size batteries
- Dimensions: 6.7 x 2.5 x 1.2"
AX100 Specifications:
- Weight: 5.4 oz
- Dimensions: 2.3 x 2.1 x 2.9"
- Input Level: MIC setting: -35 dBu minimum
- Inputs: One stereo 1/8 (3.5 mm) Mini-Jack Input, Two mono 1/8
- (3.5 mm) Mini-Jack Inputs
- Output: One stereo 1/8 (3.5 mm) Mini-Jack Output
- Frequency Response: 10Hz to 100kHZ (+/-1.5dB)
