Item Includes:
- 2x Portable Receiver (RX9)
- 4x Body-pack transmitter (TX9)
- 4x Omni-Directional Lavalier Microphone
- 2x XLR-BMP audio output cable
- 2x 3.5mm plug-bmp audio cable
- 6x Belt clip
- 4x Wind screen
- 2x Shoe Mount Adapter
- 4x Microphone holder clip
- Saramonic SR-AX100 Universal Audio Adapter for DSLR Cameras & Camcorders

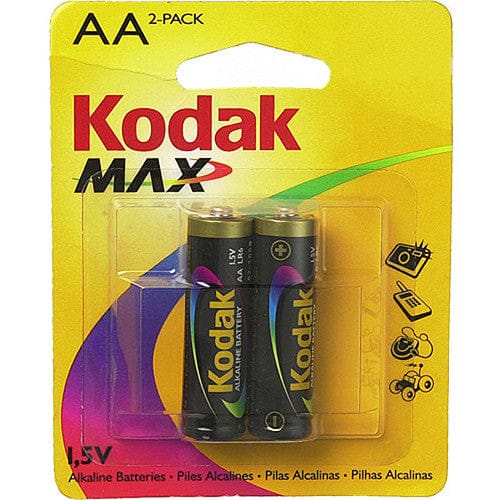

- 3x 4 Pack Kodak Max AA Batteries

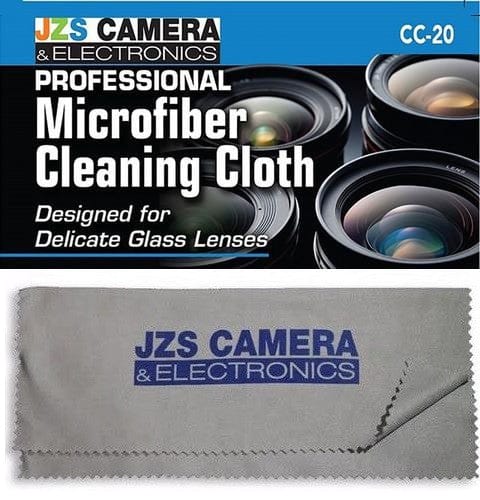

- JZS Electronic CC-20 Microfiber Cleaning Cloth
- 1 Year Limited Warranty
UwMic9 Overview:
The Saramonic RX9+TX9+TX9 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.
The system includes a camera-mountable, wireless receiver, 2 wireless body-pack transmitters and 2 clip-on lavalier mics.
The Saramonic UwMic9-RX9 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver.
Equipped with an auto-scan function, the RX9 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.
This compact transmitter employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.
AX100 Overview:

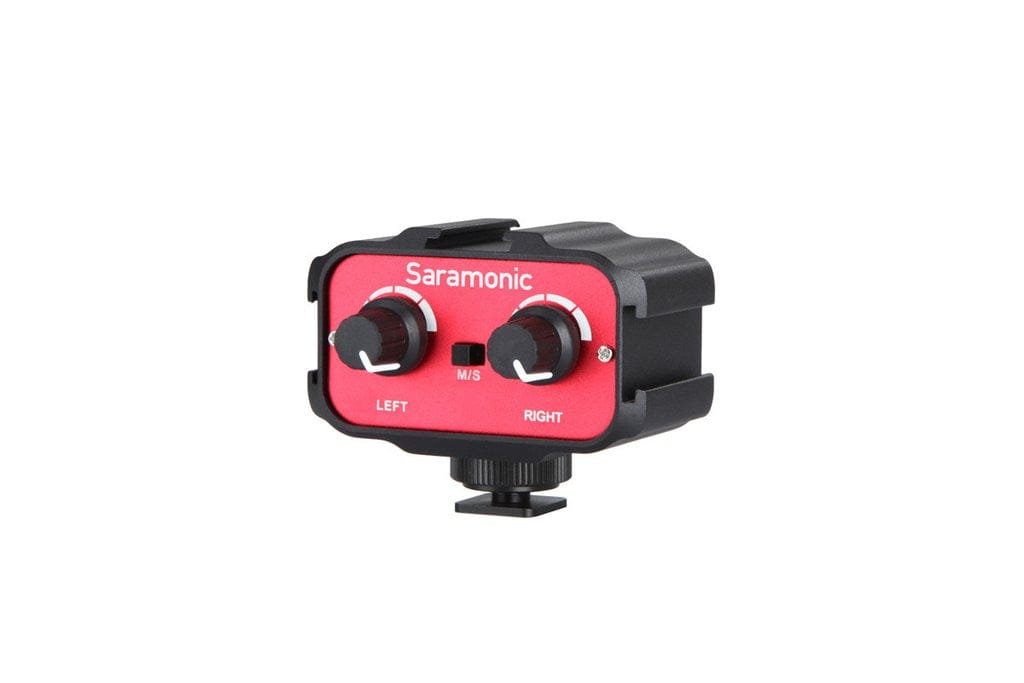

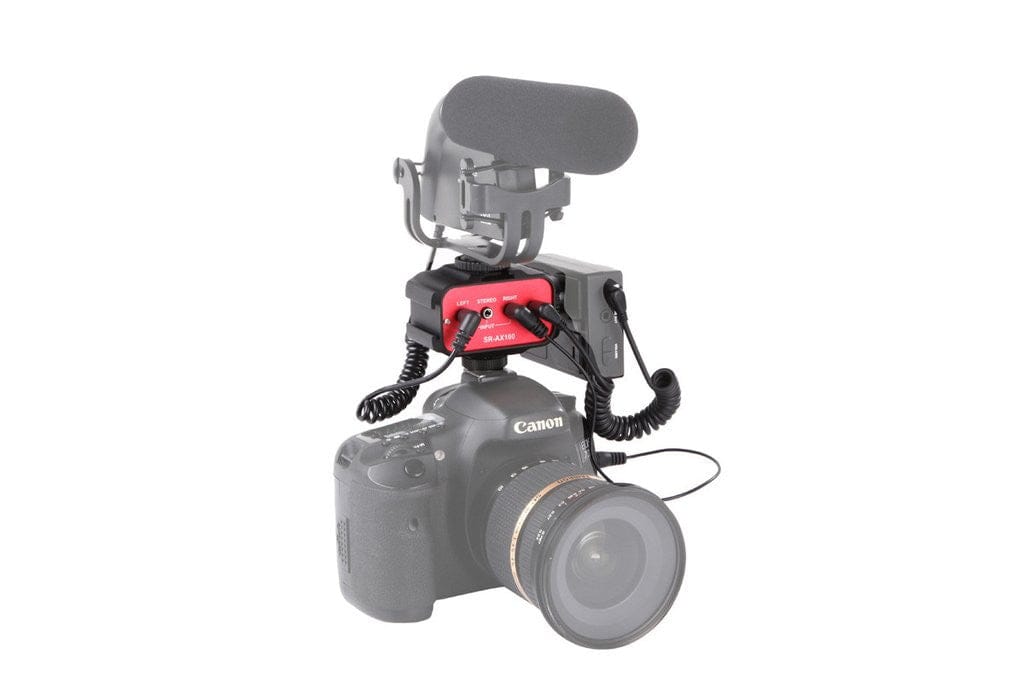

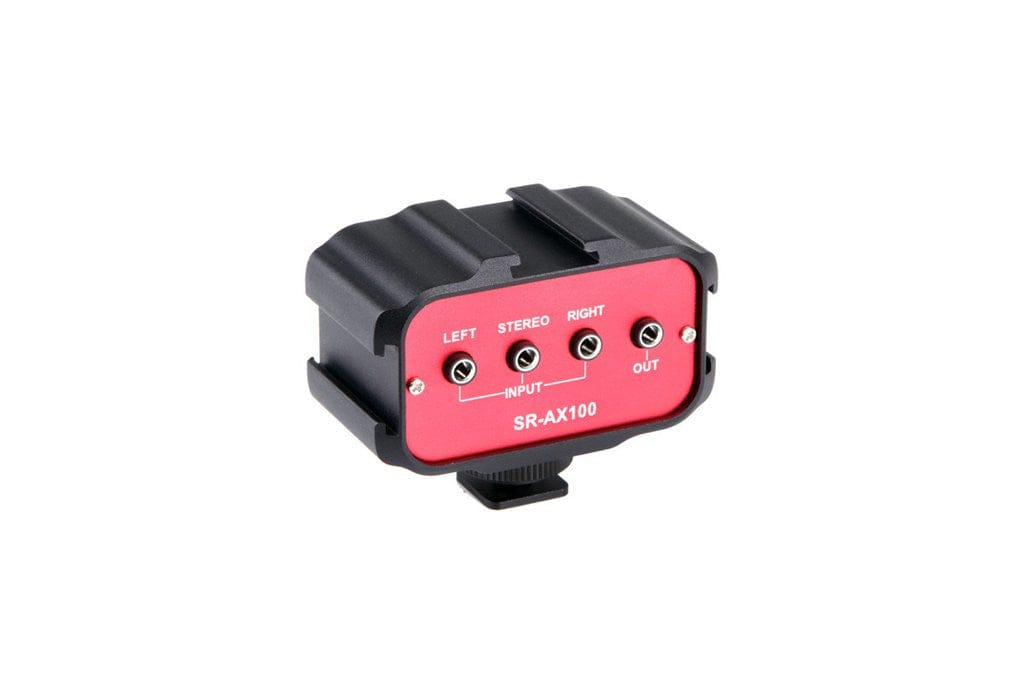

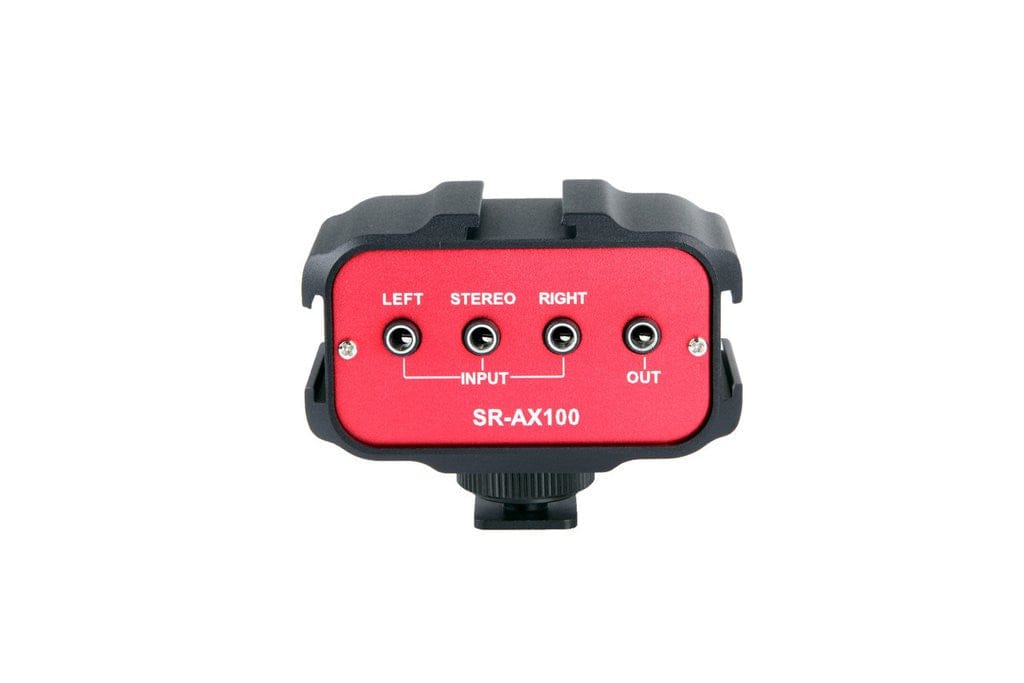

The Saramonic SR-AX100 is a 2-channel audio adapter ideal for recording professional audio on any DSLR or camcorder that has a standard mounting shoe and built-in audio jack.
This adapter provides you with a compact dual-mic mounting and audio mixing solution, which allows you to easily mount and control two mics or wireless receivers.
The SR-AX100 features a passive circuit, making it virtually noise free, and does not require batteries or a power source.
The included JZS microfiber cleaning cloth allows you to easily and quickly clean the screens of all electronic devices you own. The included batteries enable you to use your Saramonic product from the moment you open the package.
UwMic9 Features:
- Reliable, broadcast-quality audio
- Wireless transmitter with lavalier microphone
- 96 selectable channels in 2 groups
- Operates over 330' in open areas, or 200' with obstacles
- Easy to read LCD displays
AX100 Features:
- Dual trim control knobs let you easily adjust the signal to each channel to set your optimum recording levels
- Select mono or stereo output mode
- Three integrated mounting shoes enable you to attach a variety of mics or wireless receivers
UwMic9 Specifications:
- Weight: 0.4 oz
- Channels: 96 channels
- Groups: A and B groups
- Oscillator Type: PLL synthesizer
- Output: 3.5mm mini jack
- Antenna: 1/4" wire antenna
- Audio Output Level: -60 dBV
- Headphone Output Level: 30mW (16 ohm)
- Frequency Range: 614 MHz - 696 MHz
- Sensitivity: -95 dBm
- Signal to Noise Ratio: 70 dB or more
- Voice Delay: 12 ms
- Reference Deviation: +/- 5 kHz
- Frequency Response: 40 Hz to 18 kHz (+/- 3dB)
- Distortion: 0.5% or less
- Spur Suppression: -60 dB
- Weight Without Batteries: 7.7 oz
- Battery: 2 AA size batteries
- Dimensions: 6.7 x 2.5 x 1.2"
AX100 Specifications:
- Weight: 5.4 oz
- Dimensions: 2.3 x 2.1 x 2.9"
- Input Level: MIC setting: -35 dBu minimum
- Inputs: One stereo 1/8 (3.5 mm) Mini-Jack Input, Two mono 1/8 (3.5 mm) Mini-Jack Inputs
- Output: One stereo 1/8 (3.5 mm) Mini-Jack Output
- Frequency Response: 10Hz to 100kHZ (+/-1.5dB)
